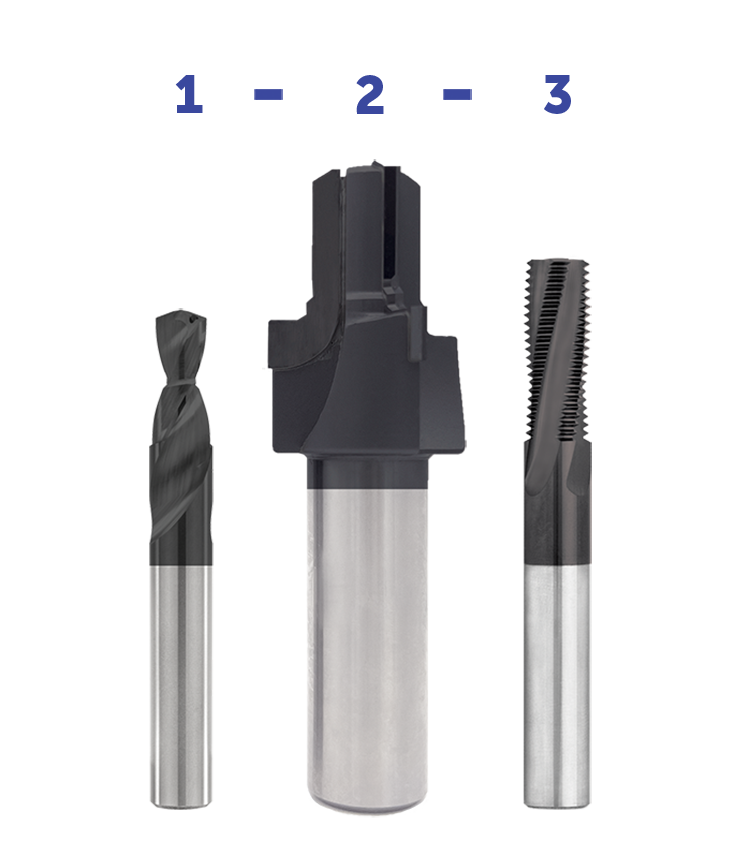

The AS5202 Roughing Port Kit is a 3-piece solution designed for machining the full port profile. It includes:

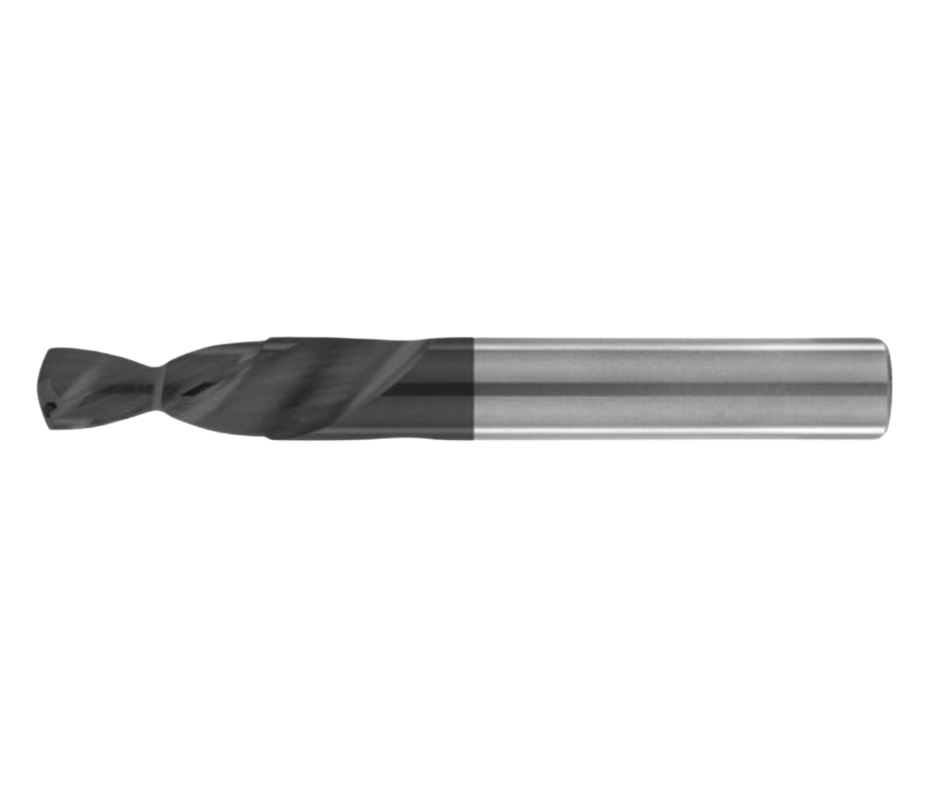

Roughing Step Drill – Cuts the complete port geometry in a single operation

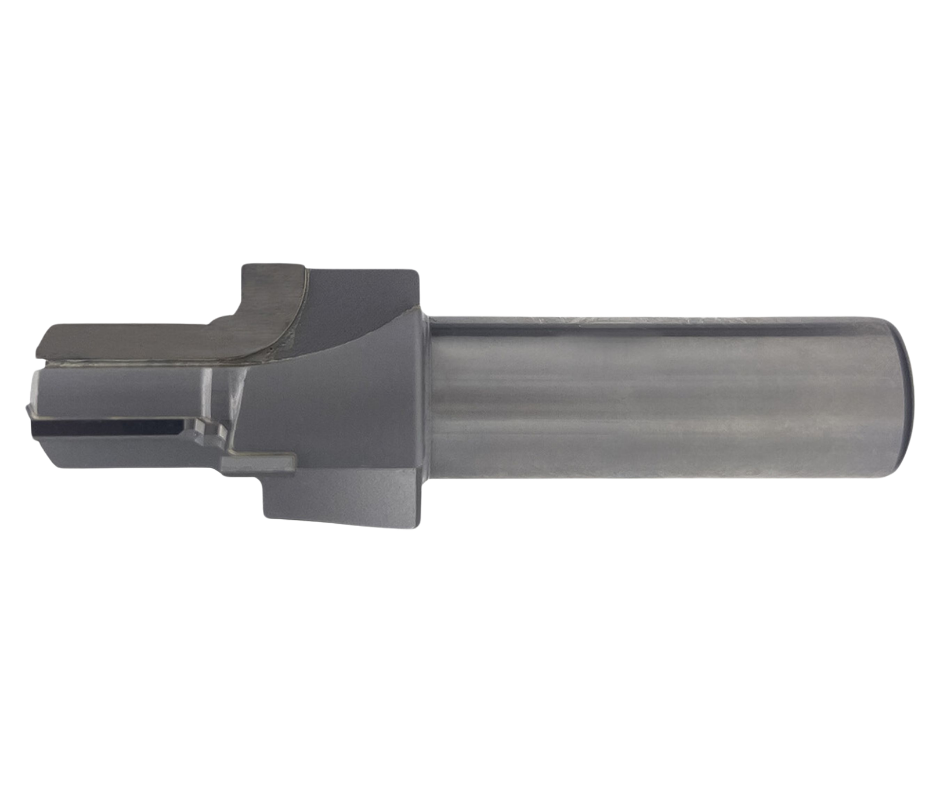

AS5202 Port Tool Reamer – Refines the port’s sealing surface to print specs

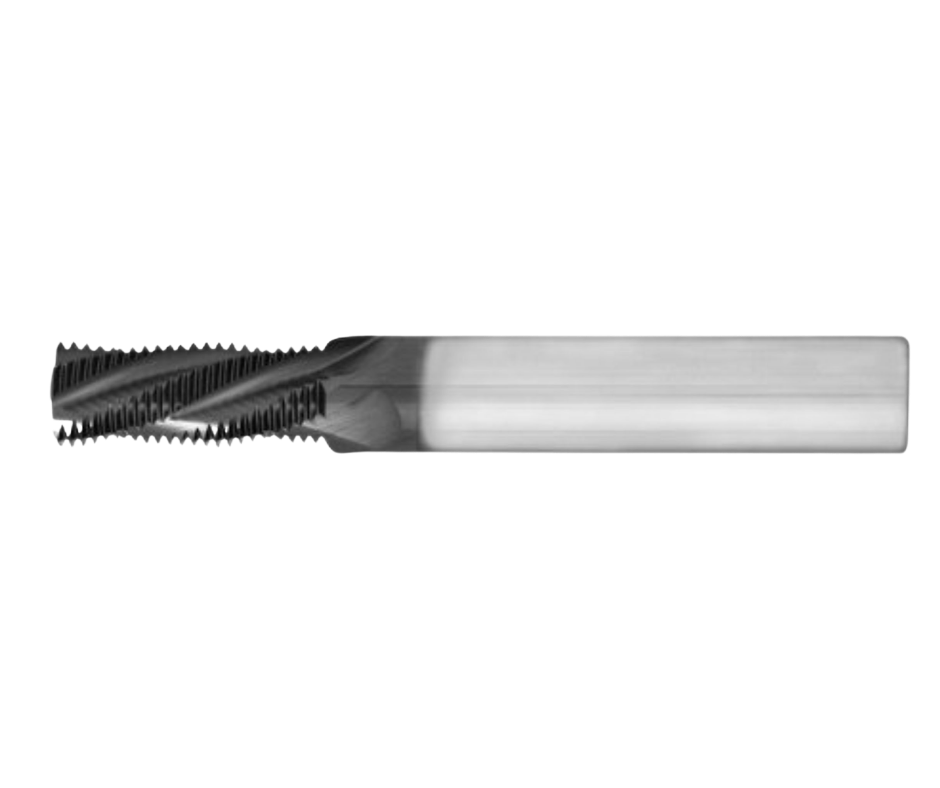

15° Helical Thread Mill – Delivers clean, accurate threads with minimal deflection
This kit is ideal for operations requiring high precision and fewer setups. All tools are engineered to work in sequence, delivering a streamlined, repeatable process that ensures full compliance with AS5202 standards.
AS5202 Roughing Port Kit
Port Size | Drill | Port Tool | Thread Mill | Kit Order Number | Kit EDP Number |
---|---|---|---|---|---|
AS5202-2 | RD-AS5202-02A | AS5202-02RA | TMI234-24HA | AS5202KIT02RA | 410030 |
AS5202-3 | RD-AS5202-03A | AS5202-03RA | TMI285-24HA | AS5202KIT03RA | 410032 |
AS5202-4 | RD-AS5202-04A | AS5202-04RA | TMI335-20HA | AS5202KIT04RA | 410034 |
AS5202-5 | RD-AS5202-05A | AS5202-05RA | TMI370-20HA | AS5202KIT05RA | 410036 |
AS5202-6 | RD-AS5202-06A | AS5202-06RA | TMI370-18HA | AS5202KIT06RA | 410038 |
AS5202-8 | RD-AS5202-08A | AS5202-08RA | TMI495-16HA | AS5202KIT08RA | 410040 |
