Drills
Drills Built for Reliable
Starts and Faster Porting
DFX Drills, Roughing Step Drills, and Spotting Drills engineered to reduce tool changes, stabilize the cut, and support high performance port machining.

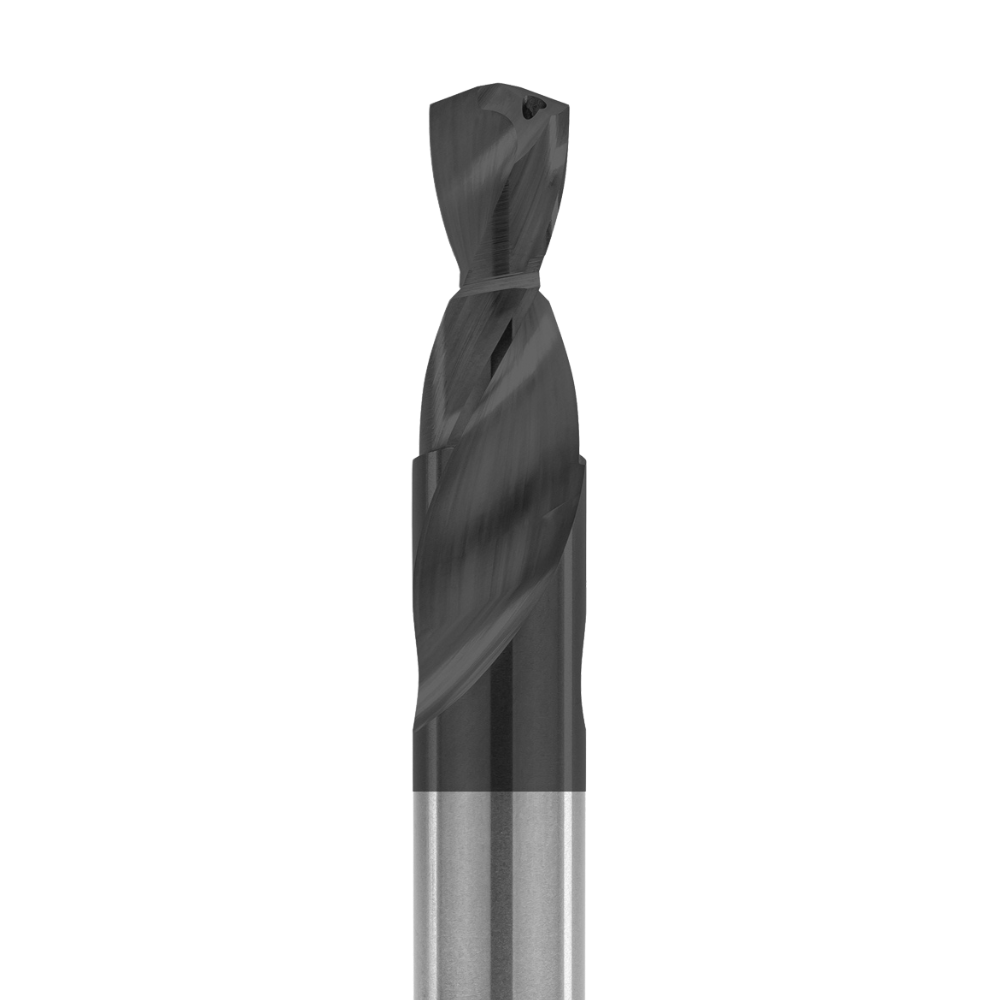

Roughing Step
Drills
Prepares the hole for a port tool by roughing the minor thread and sealing diameters
Coolant-through for superior chip evacuation
140° self-centering point

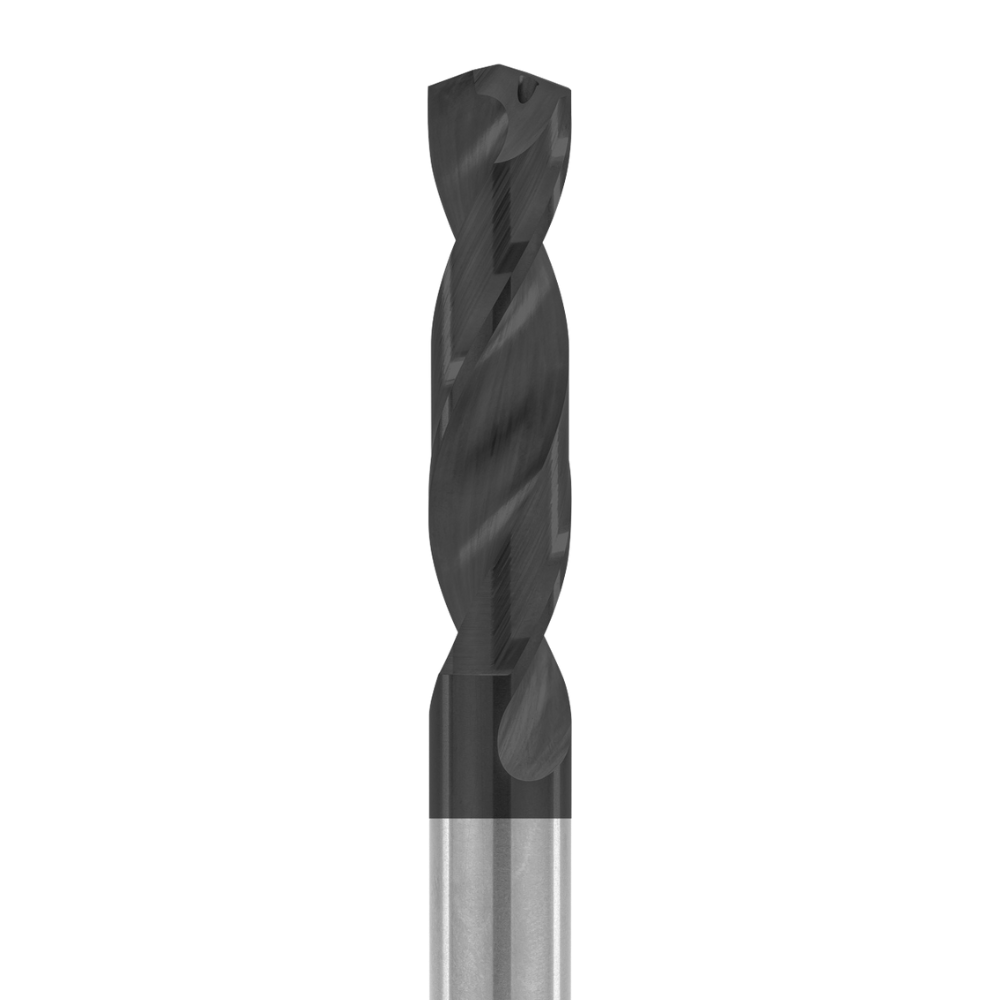

DFX Drills
Prepares the hole for a port tool by cutting the minor thread and diameter to size
Coolant-through for superior chip evacuation
140° self-centering point
Spotting
Drills
Designed with a 4-facet point and constant web
Point angle is held to ± 1° tolerance
20° helical flute
Support That Starts
Before the Cut
Drilling success depends on what happens before the finish tool ever engages. Use the resources below to speed up programming, confirm fit, and get help fast.
DXF and STEP File Downloads. Get CAD-ready files for faster CAM programming and toolpath simulation.
Still need help? Our in-house engineers are just a click away. Submit a question and we’ll get back to you quickly.
