AS5202 Minor Diameter Kit for Ferrous Materials

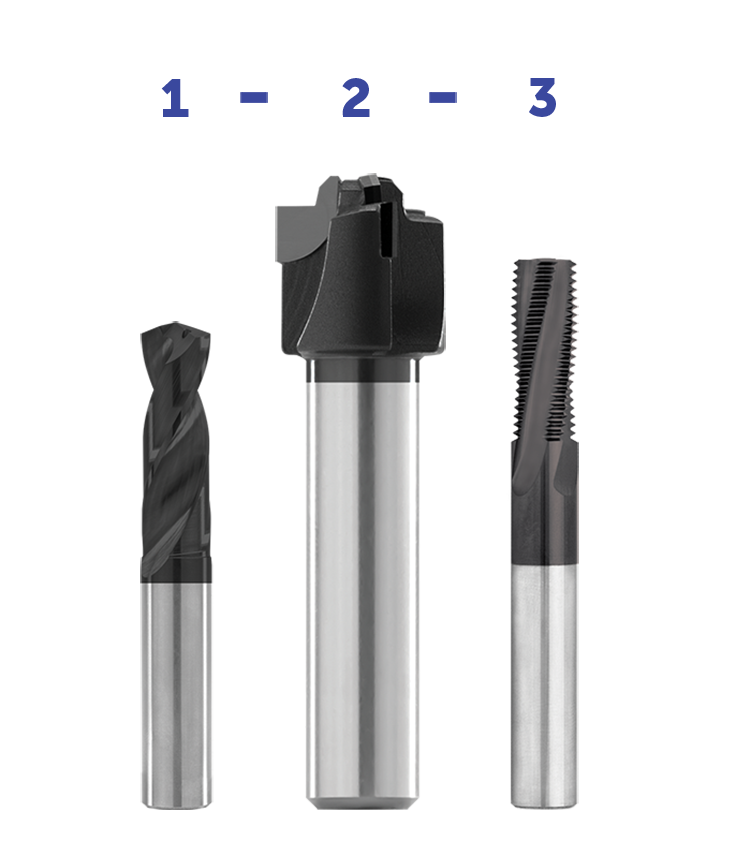

This kit includes:
Minor Diameter DFX Drill for preparing the hole to the proper minor diameter
Pilotless AS5202 Porting Tool for machining the port geometry
15° Helical Thread Mill for clean, accurate thread milling
AlTiN+ coating across the full kit for ferrous applications

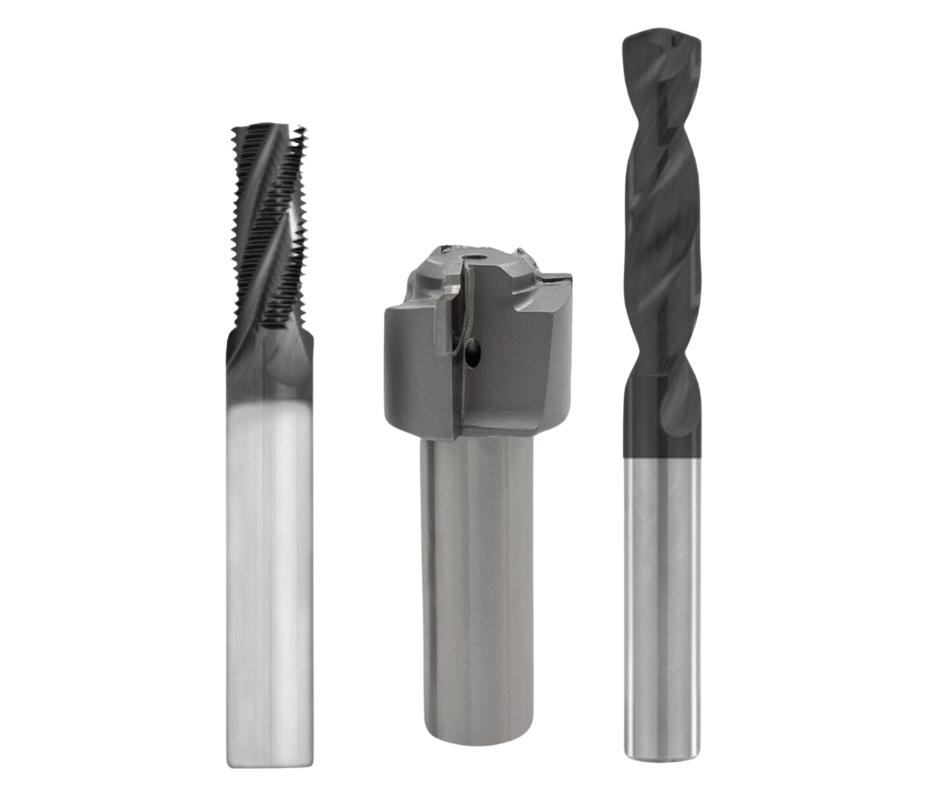

Built for steel, stainless, and other tougher materials, the SCT AS5202 Minor Diameter Kit is a matched 3-piece solution for machining the full port profile. This kit includes a DFX drill, a pilotless AS5202 porting tool, and a 15° helical thread mill, all configured to work in sequence for a more streamlined and repeatable process.
All tools in this kit are AlTiN+ coated, giving shops a stronger starting point for heat control, edge wear, and tool life in demanding ferrous applications.
| Port Size | Drill | Port Tool | Thread Mill | Kit Order Number | Kit EDP Number |
|---|---|---|---|---|---|
| AS5202-2 | DFX3-276A | AS5202-02XA | TMI234-24HA | AS5202KIT02XA | 410042 |
| AS5202-3 | DFX3-338A | AS5202-03XA | TMI285-24HA | AS5202KIT03XA | 410044 |
| AS5202-4 | DFX3-393A | AS5202-04XA | TMI335-20HA | AS5202KIT04XA | 410046 |
| AS5202-5 | DFX3-455A | AS5202-05XA | TMI370-20HA | AS5202KIT05XA | 410048 |
| AS5202-6 | DFX3-513A | AS5202-06XA | TMI370-18HA | AS5202KIT06XA | 410050 |
| AS5202-8 | DFX3-693A | AS5202-08XA | TMI495-16HA | AS5202KIT08XA | 410052 |
Need help selecting the right kit?
If you want help choosing between AS5202 and SAE J1926, or between Roughing and Minor Diameter, the SCT team can help point you in the right direction.
