Metric Long Reach Thread Mill (TMLR)

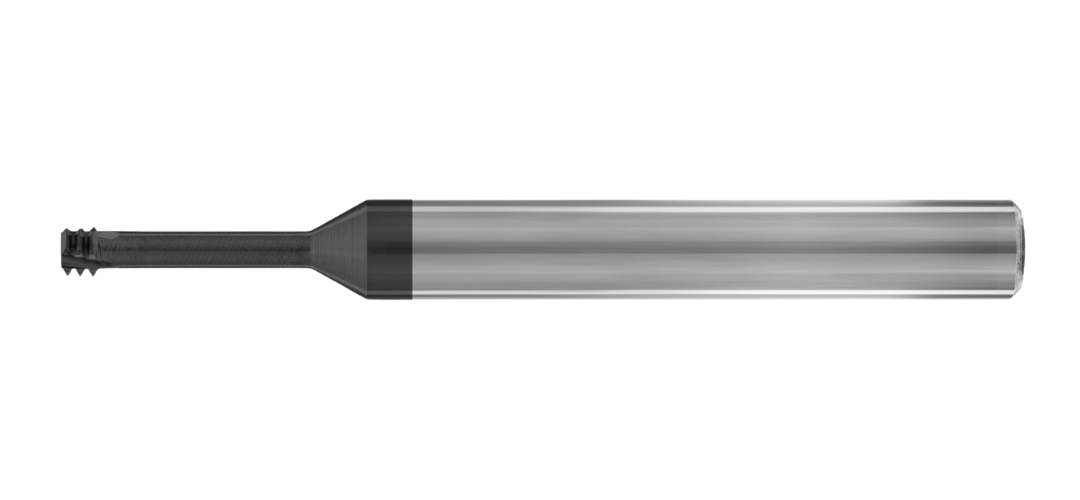

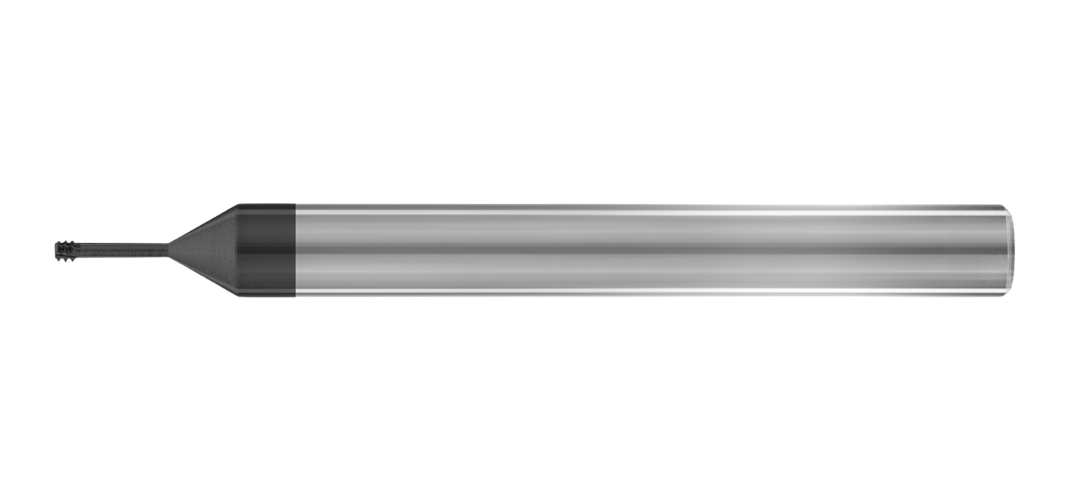

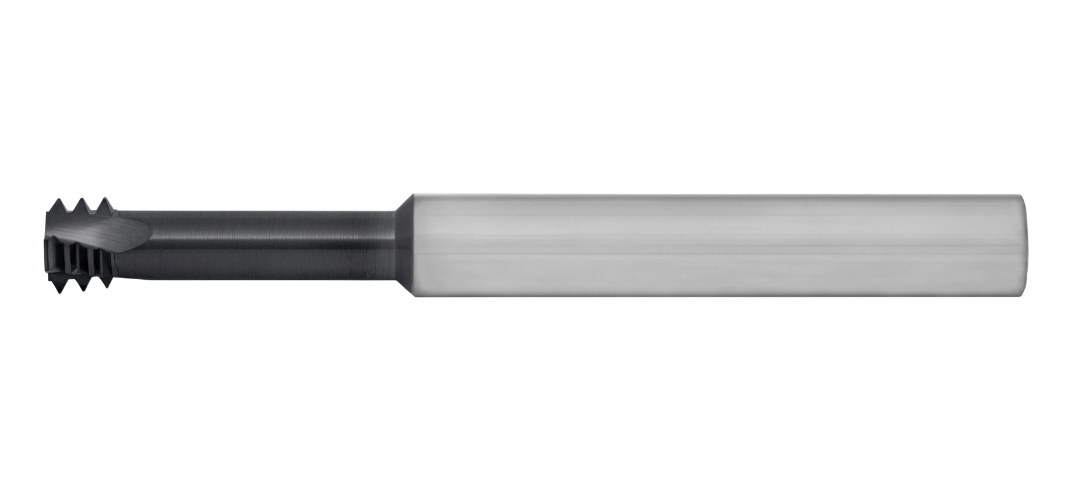

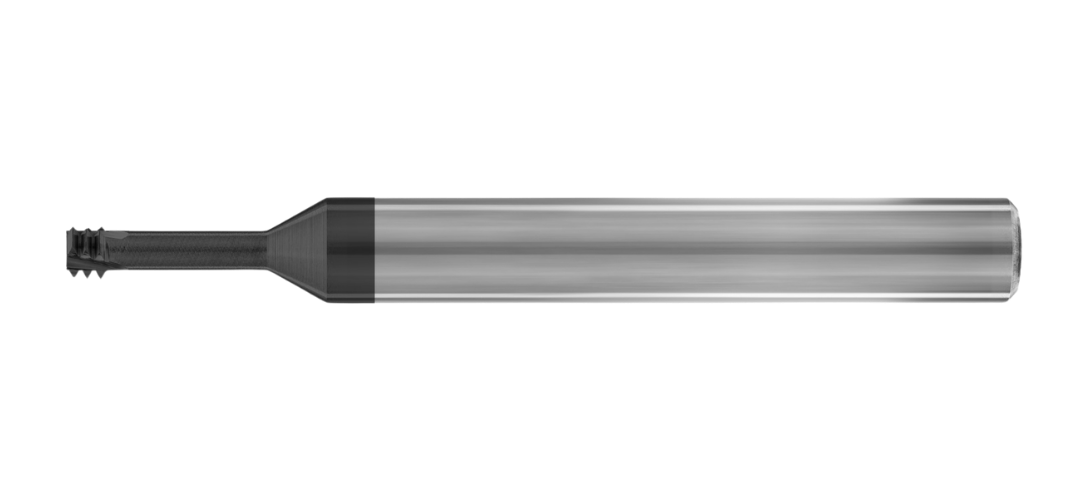

Small thread milling is made easy with our TMLR tools, specifically engineered for precision in miniature threading applications. With minimal cutting pressure, these tools reduce the risk of deflection and part distortion, making them ideal for delicate or thin-walled components. Thread sizes start as small as M1.4×0.3mm, providing unmatched accuracy and control in micro-machining tasks. Crafted from solid carbide for maximum rigidity, TMLR tools are also available with AlTiN+ coating for ferrous materials and TaC coating for non-ferrous materials, ensuring optimal performance across a variety of applications.

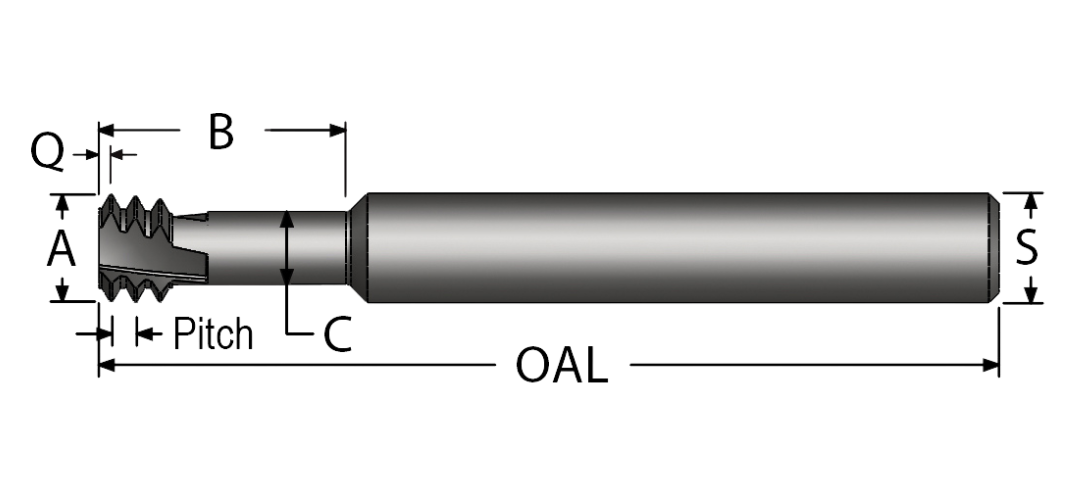

| Thread/Pitch | A (Tool Diameter) | B (Length of Cut) | C (Neck Diameter) | Q (Length) | S (Shank Diameter) | OAL | Flutes | Uncoated Tool # | Uncoated EDP # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|
| M1.4-.3 | 0.039 | 0.115 | 0.021 | 0.006 | 0.125 | 1.50 | 3 | TMLR1.4-.3MM | 110001 | 110019 |
| M1.4-.3 | 0.039 | 0.150 | 0.021 | 0.006 | 0.125 | 1.50 | 3 | TMLR1.4-.3MMEL | 110004 | 110022 |
| M1.4-.3 | 0.039 | 0.190 | 0.021 | 0.006 | 0.125 | 1.50 | 3 | TMLR1.4-.3MMXL | 110005 | 110023 |
| M1.6-.35 | 0.045 | 0.135 | 0.023 | 0.007 | 0.125 | 1.50 | 3 | TMLR1.6-.35MM | 110007 | 110025 |
| M1.6-.35 | 0.045 | 0.180 | 0.023 | 0.007 | 0.125 | 1.50 | 3 | TMLR1.6-.35MMEL | 110010 | 110028 |
| M1.6-.35 | 0.045 | 0.210 | 0.023 | 0.007 | 0.125 | 1.50 | 3 | TMLR1.6-.35MMXL | 110011 | 110029 |
| M2-.4 | 0.056 | 0.150 | 0.030 | 0.008 | 0.125 | 1.50 | 3 | TMLRS2-.4MM | 110013 | 110031 |
| M2-.4 | 0.056 | 0.200 | 0.030 | 0.008 | 0.125 | 1.50 | 3 | TMLRS2-.4MMEL | 110016 | 110034 |
| M2-.4 | 0.056 | 0.150 | 0.030 | 0.008 | 0.250 | 2.50 | 3 | TMLR2-.4MM | 110037 | 110097 |
| M2-.4 | 0.056 | 0.200 | 0.030 | 0.008 | 0.250 | 2.50 | 3 | TMLR2-.4MMEL | 110040 | 110100 |
| M2-.4 | 0.056 | 0.270 | 0.030 | 0.008 | 0.250 | 2.50 | 3 | TMLR2-.4MMXL | 110041 | 110101 |
| M2.5-.45 | 0.073 | 0.190 | 0.046 | 0.009 | 0.250 | 2.50 | 3 | TMLR2.5-.45MM | 110043 | 110103 |
| M2.5-.45 | 0.073 | 0.250 | 0.046 | 0.009 | 0.250 | 2.50 | 3 | TMLR2.5-.45MMEL | 110046 | 110106 |
| M2.5-.45 | 0.073 | 0.350 | 0.046 | 0.009 | 0.250 | 2.50 | 3 | TMLR2.5-.45MMXL | 110047 | 110107 |
| M3-.5 | 0.090 | 0.225 | 0.059 | 0.010 | 0.250 | 2.50 | 3 | TMLR3-.5MM | 110049 | 110109 |
| M3-.5 | 0.090 | 0.300 | 0.059 | 0.010 | 0.250 | 2.50 | 3 | TMLR3-.5MMEL | 110052 | 110112 |
| M3-.5 | 0.090 | 0.350 | 0.059 | 0.010 | 0.250 | 2.50 | 3 | TMLR3-.5MMXL | 110053 | 110113 |
| M4-.5 | 0.120 | 0.300 | 0.089 | 0.010 | 0.250 | 2.50 | 3 | TMLR4-.5MM | 110055 | 110115 |
| M4-.5 | 0.120 | 0.500 | 0.089 | 0.010 | 0.250 | 2.50 | 3 | TMLR4-.5MMEL | 110058 | 110118 |
| M4-.5 | 0.120 | 0.600 | 0.089 | 0.010 | 0.250 | 2.50 | 3 | TMLR4-.5MMXL | 110059 | 110116 |
| M4-.7 | 0.120 | 0.300 | 0.079 | 0.014 | 0.250 | 2.50 | 3 | TMLR4-.7MM | 110061 | 110121 |
| M4-.7 | 0.120 | 0.500 | 0.079 | 0.014 | 0.250 | 2.50 | 3 | TMLR4-.7MMEL | 110064 | 110124 |
| M5-.8 | 0.150 | 0.400 | 0.103 | 0.016 | 0.250 | 2.50 | 3 | TMLR5-.8MM | 110067 | 110127 |
| M5-.8 | 0.150 | 0.600 | 0.103 | 0.016 | 0.250 | 2.50 | 3 | TMLR5-.8MMEL | 110070 | 110130 |
| M5-.8 | 0.150 | 0.700 | 0.103 | 0.016 | 0.250 | 2.50 | 3 | TMLR5-.8MMXL | 110071 | 110131 |
| M6-1 | 0.180 | 0.500 | 0.120 | 0.020 | 0.250 | 2.50 | 3 | TMLR6-1MM | 110073 | 110133 |
| M6-1 | 0.180 | 0.700 | 0.120 | 0.020 | 0.250 | 2.50 | 3 | TMLR6-1MMEL | 110076 | 110136 |
| M6-1 | 0.180 | 0.900 | 0.120 | 0.015 | 0.250 | 2.50 | 3 | TMLR6-1MMXL | 110077 | 110137 |
| M8-.75 | 0.234 | 0.600 | 0.190 | 0.015 | 0.250 | 2.50 | 3 | TMLR8-.75MM | 110079 | 110139 |
| M8-.75 | 0.234 | 0.850 | 0.190 | 0.020 | 0.250 | 2.50 | 3 | TMLR8-.75MMEL | 110082 | 110142 |
| M8-1 | 0.234 | 0.600 | 0.175 | 0.020 | 0.250 | 2.50 | 3 | TMLR8-1MM | 110091 | 110151 |
| M8-1 | 0.234 | 0.850 | 0.175 | 0.020 | 0.250 | 2.50 | 3 | TMLR8-1MMEL | 110094 | 110154 |
| M8-1 | 0.234 | 1.100 | 0.175 | 0.020 | 0.250 | 2.50 | 3 | TMLR8-1MMXL | 110095 | 110155 |
| M8-1.25 | 0.234 | 0.600 | 0.162 | 0.025 | 0.250 | 2.50 | 3 | TMLR8-1.25MM | 110085 | 110145 |
| M8-1.25 | 0.234 | 0.850 | 0.162 | 0.025 | 0.250 | 2.50 | 3 | TMLR8-1.25MMEL | 110088 | 110148 |
| M10-1 | 0.310 | 0.750 | 0.250 | 0.020 | 0.375 | 3.50 | 3 | TMLR10-1MM | 110163 | 110187 |
| M10-1 | 0.310 | 1.000 | 0.250 | 0.020 | 0.375 | 3.50 | 3 | TMLR10-1MMEL | 110166 | 110190 |
| M10-1.5 | 0.310 | 0.750 | 0.223 | 0.030 | 0.375 | 3.50 | 3 | TMLR10-1.5MM | 110157 | 110181 |
| M10-1.5 | 0.310 | 1.000 | 0.223 | 0.030 | 0.375 | 3.50 | 3 | TMLR10-1.5MMEL | 110160 | 110184 |
| M10-1.5 | 0.310 | 1.500 | 0.223 | 0.030 | 0.375 | 3.50 | 3 | TMLR10-1.5MMXL | 110161 | 110185 |
| M12-1 | 0.370 | 0.800 | 0.310 | 0.020 | 0.375 | 3.50 | 3 | TMLR12-1MM | 110175 | 110199 |
| M12-1 | 0.370 | 1.200 | 0.310 | 0.020 | 0.375 | 3.50 | 3 | TMLR12-1MMEL | 110178 | 110202 |
| M12-1.25 | 0.370 | 0.800 | 0.295 | 0.025 | 0.375 | 3.50 | 3 | TMLR12-1.25MM | 110169 | 110193 |
| M12-1.25 | 0.370 | 1.200 | 0.295 | 0.025 | 0.375 | 3.50 | 3 | TMLR12-1.25MMEL | 110172 | 110196 |
| M12-1.75 | 0.340 | 0.800 | 0.235 | 0.034 | 0.375 | 3.50 | 3 | TMLR12-1.75MM | 110068 | 110192 |
| M12-1.75 | 0.340 | 1.200 | 0.235 | 0.034 | 0.375 | 3.50 | 3 | TMLR12-1.75MMEL | 110069 | 110194 |
| M14-1.5 | 0.450 | 1.200 | 0.360 | 0.030 | 0.500 | 4.00 | 4 | TMLR14-1.5MM | 110205 | 110217 |
| M14-1.5 | 0.450 | 1.650 | 0.360 | 0.030 | 0.500 | 4.00 | 4 | TMLR14-1.5MMEL | 110208 | 110220 |
| M14-2 | 0.450 | 1.200 | 0.330 | 0.039 | 0.500 | 4.00 | 4 | TMLR14-2MM | 110211 | 110223 |
| M14-2 | 0.450 | 1.650 | 0.330 | 0.039 | 0.500 | 4.00 | 4 | TMLR14-2MMEL | 110214 | 110226 |
| M14-2 | 0.450 | 2.100 | 0.330 | 0.039 | 0.500 | 4.00 | 4 | TMLR14-2MMXL | 110215 | 110224 |
