Our DHF Holders are designed for use with our single point tools and feature a precision-ground flat for secure alignment in set-screw style tool blocks. Made from heat-treated steel and equipped with two lock-down screws, DHF Holders deliver maximum rigidity and consistent tool positioning—ideal for turning operations that demand stability and repeatability.

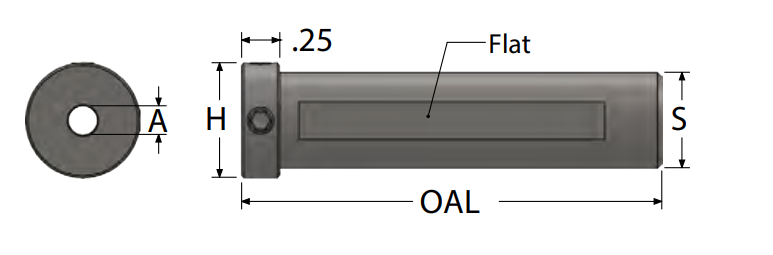

A technical drawing of a DHF tool holder with flat manufactured by Scientific Cutting Tools

DHF Holders with Flat

A (Inside Diameter)S (Shank Diameter)H (Head Diameter)OALTool #EDP #
0.12500.3750.5002.00DHF37-1/8200104
0.15620.3750.5002.00DHF37-5/32200110
0.18750.3750.5002.00DHF37-3/16200107
0.21870.3750.5002.00DHF37-7/32200113
0.25000.3750.5002.00DHF37-1/4200101
0.12500.5000.6252.75DHF50-1/8200119
0.15620.5000.6252.75DHF50-5/32200131
0.18750.5000.6252.75DHF50-3/16200122
0.21870.5000.6252.75DHF50-7/32200134
0.25000.5000.6252.75DHF50-1/4200116
0.31250.5000.6252.75DHF50-5/16200128
0.12500.6250.7502.75DHF62-1/8200140
0.15620.6250.7502.75DHF62-5/32200152
0.18750.6250.7502.75DHF62-3/16200143
0.21870.6250.7502.75DHF62-7/32200155
0.25000.6250.7502.75DHF62-1/4200137
0.31250.6250.7502.75DHF62-5/16200149
0.37500.6250.7502.75DHF62-3/8200146
0.12500.7500.8752.75DHF75-1/8200164
0.18750.7500.8752.75DHF75-3/16200167
0.25000.7500.8752.75DHF75-1/4200161
0.31250.7500.8752.75DHF75-5/16200173
0.37500.7500.8752.75DHF75-3/8200170
0.50000.7500.8752.75DHF75-1/2200158
