ISO 1179 Port Tool

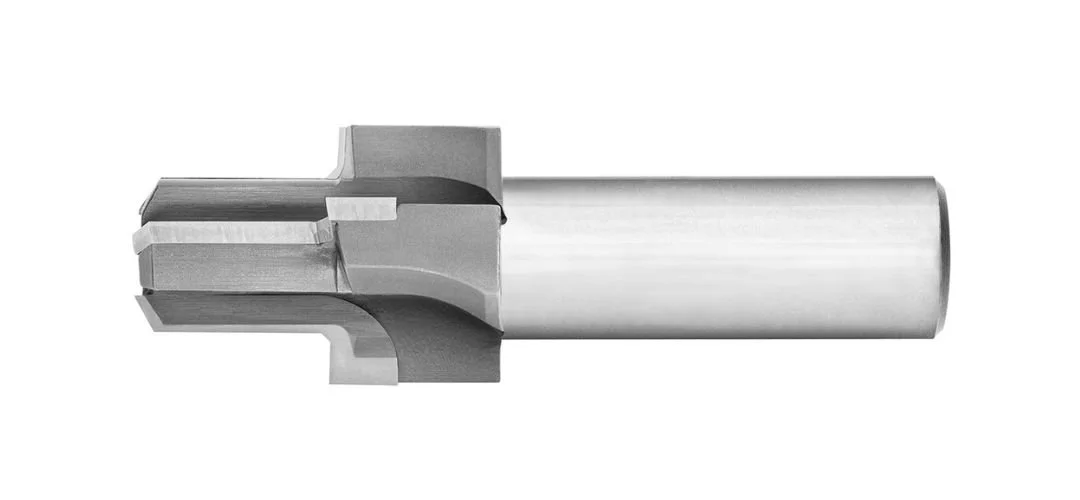

Scientific Cutting Tools’ ISO 1179 Port Tool is engineered to meet the exacting standards of ISO 1179, offering a modern, high-performance replacement for traditional BSPP Pipe Reamers. Each tool is precision ground for maximum concentricity and features a polished flute face for smooth cutting, efficient chip removal, and excellent surface finish. The optional AlTiN+ coating enhances wear resistance and tool life, making it ideal for high-production hydraulic applications that demand consistency and accuracy.

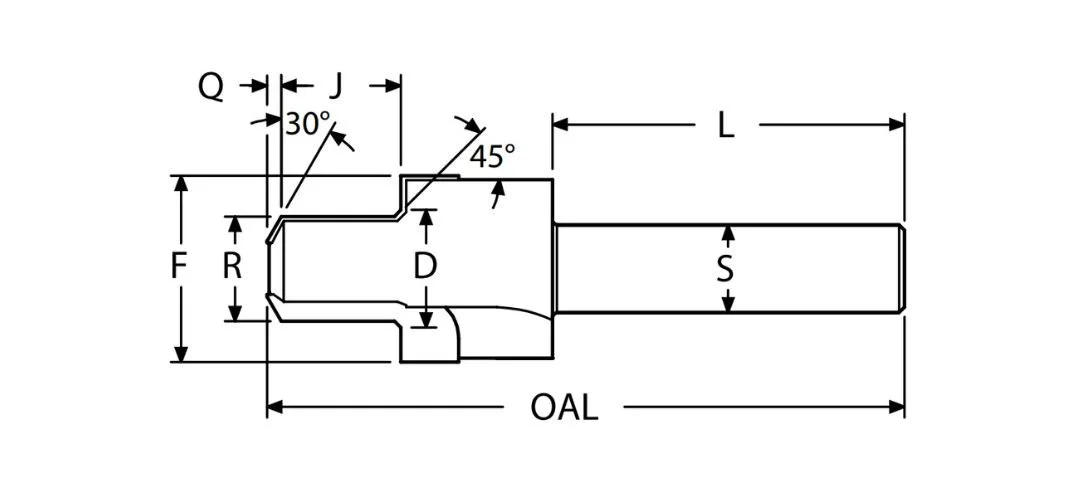

| D | F | J | R | Q | L | S | OAL | Flutes | Thread | Tool # | Uncoated EDP # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.398 | 0.681 | 0.445 | 0.345 | 0.045 | 2.00 | 0.500 | 3.50 | 3 | G1/8 | 1179-G125 | 402874 | 402875 |
| 0.524 | 0.819 | 0.683 | 0.459 | 0.065 | 2.00 | 0.500 | 3.62 | 3 | G1/4 | 1179-G250 | 402876 | 402877 |
| 0.662 | 0.969 | 0.683 | 0.597 | 0.080 | 2.00 | 0.500 | 3.62 | 4 | G3/8 | 1179-G375 | 402878 | 402879 |
| 0.831 | 1.169 | 0.801 | 0.741 | 0.090 | 2.00 | 0.750 | 3.62 | 4 | G1/2 | 1179-G500 | 402880 | 402881 |
| 1.048 | 1.457 | 0.880 | 0.958 | 0.120 | 2.50 | 0.750 | 4.37 | 4 | G3/4 | 1179-G750 | 402882 | 402883 |
| 1.319 | 1.819 | 0.998 | 1.201 | 0.120 | 2.50 | 1.000 | 4.62 | 4 | G1 | 1179-G1000 | 402884 | 402885 |
| 1.662 | 2.130 | 1.078 | 1.541 | 0.125 | 2.50 | 1.000 | 4.62 | 4 | G1-1/4 | 1179-G1250 | 402886 | 402887 |
| 1.894 | 2.386 | 1.200 | 1.774 | 0.125 | 2.50 | 1.000 | 4.88 | 4 | G1-1/2 | 1179-G1500 | 402888 | 402889 |
