AS5202 Minor Diameter Kit for Non-Ferrous Materials

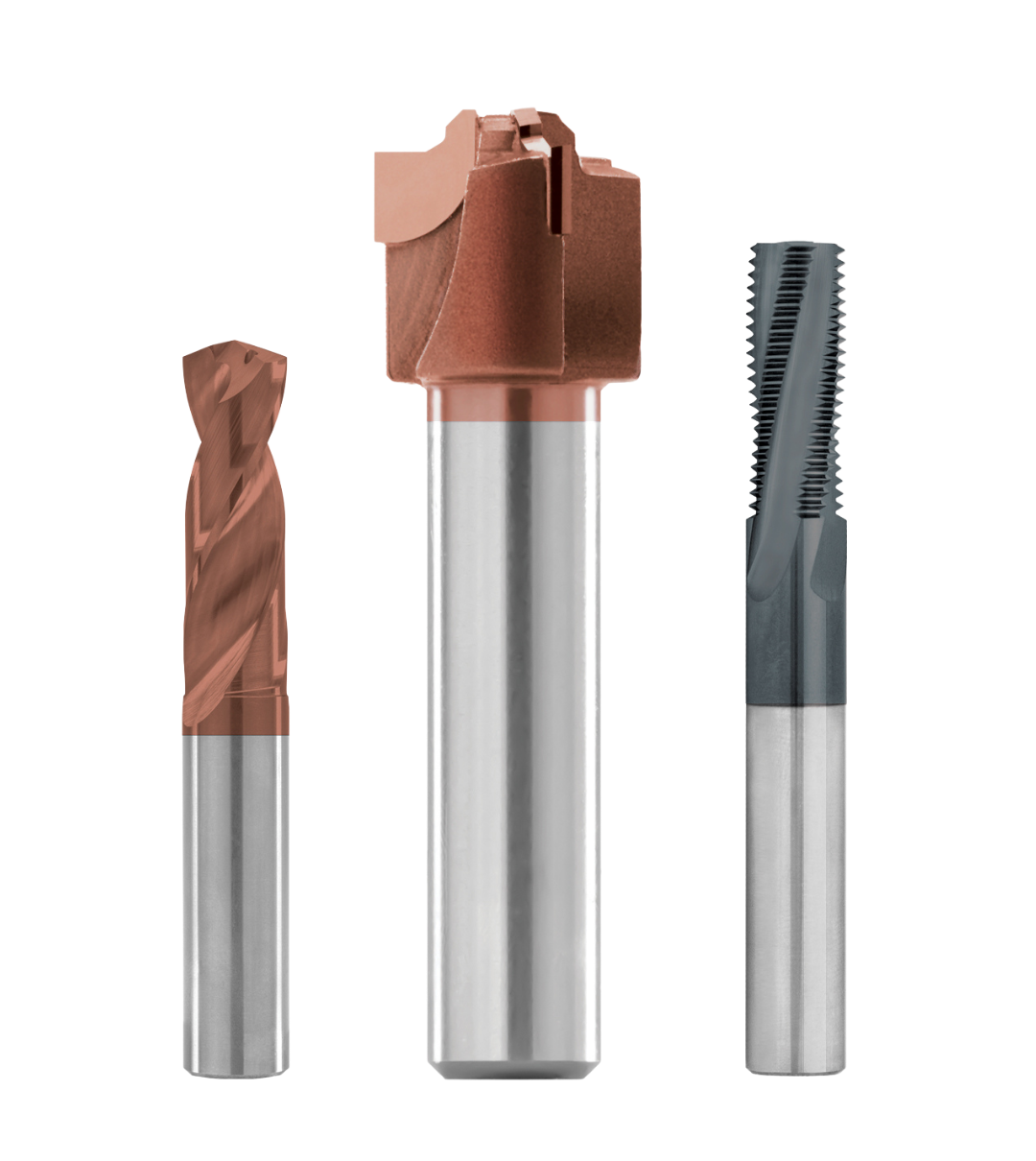

This kit includes:
Minor Diameter Drill, Zirc-coated for preparing the hole to the proper minor diameter
Pilotless AS5202 Port Tool, Zirc-coated for machining the port geometry
15° Helical Thread Mill, Onyx DLC-coated for clean, accurate thread milling
A tool-specific coating strategy for non-ferrous applications
The AS5202 Minor Diameter Port Kit is designed for shops machining aluminum and other non-ferrous materials that prefer a minor diameter drilling approach before finishing the port with a pilotless tool. The minor diameter drill prepares the hole, the pilotless AS5202 port tool machines the port geometry, and the 15° helical thread mill finishes the thread with clean, accurate results.
By bringing these tools together in one matched kit and aligning the coating by tool function, SCT gives shops a more organized and application-specific solution for AS5202 porting in non-ferrous materials.
Available AS5202 Minor Diameter Kits for Non-Ferrous Materials
Browse available kit sizes below. Each kit includes a matched minor diameter drill, pilotless AS5202 port tool, and 15° helical thread mill for a minor diameter based process in non-ferrous applications.
| Port Size | Drill | Porting Tool | Thread Mill | Kit Order Number | Kit EDP Number |
|---|---|---|---|---|---|
| AS5202-2 | DFX3-276Z | AS5202-02XZ | TMI234-24HT | AS5202KIT02XZ | 410043 |
| AS5202-3 | DFX3-338Z | AS5202-03XZ | TMI285-24HT | AS5202KIT03XZ | 410045 |
| AS5202-4 | DFX3-393Z | AS5202-04XZ | TMI335-20HT | AS5202KIT04XZ | 410047 |
| AS5202-5 | DFX3-455Z | AS5202-05XZ | TMI370-20HT | AS5202KIT05XZ | 410049 |
| AS5202-6 | DFX3-513Z | AS5202-06XZ | TMI370-18HT | AS5202KIT06XZ | 410051 |
| AS5202-8 | DFX3-693Z | AS5202-08XZ | TMI495-16HT | AS5202KIT08XZ | 410053 |
Need help selecting the right non-ferrous kit?
If you want help choosing between AS5202 and SAE J1926, or between Roughing and Minor Diameter, the SCT team can help point you in the right direction.
