SAE J1926 Minor Diameter Kit for Non-Ferrous Materials

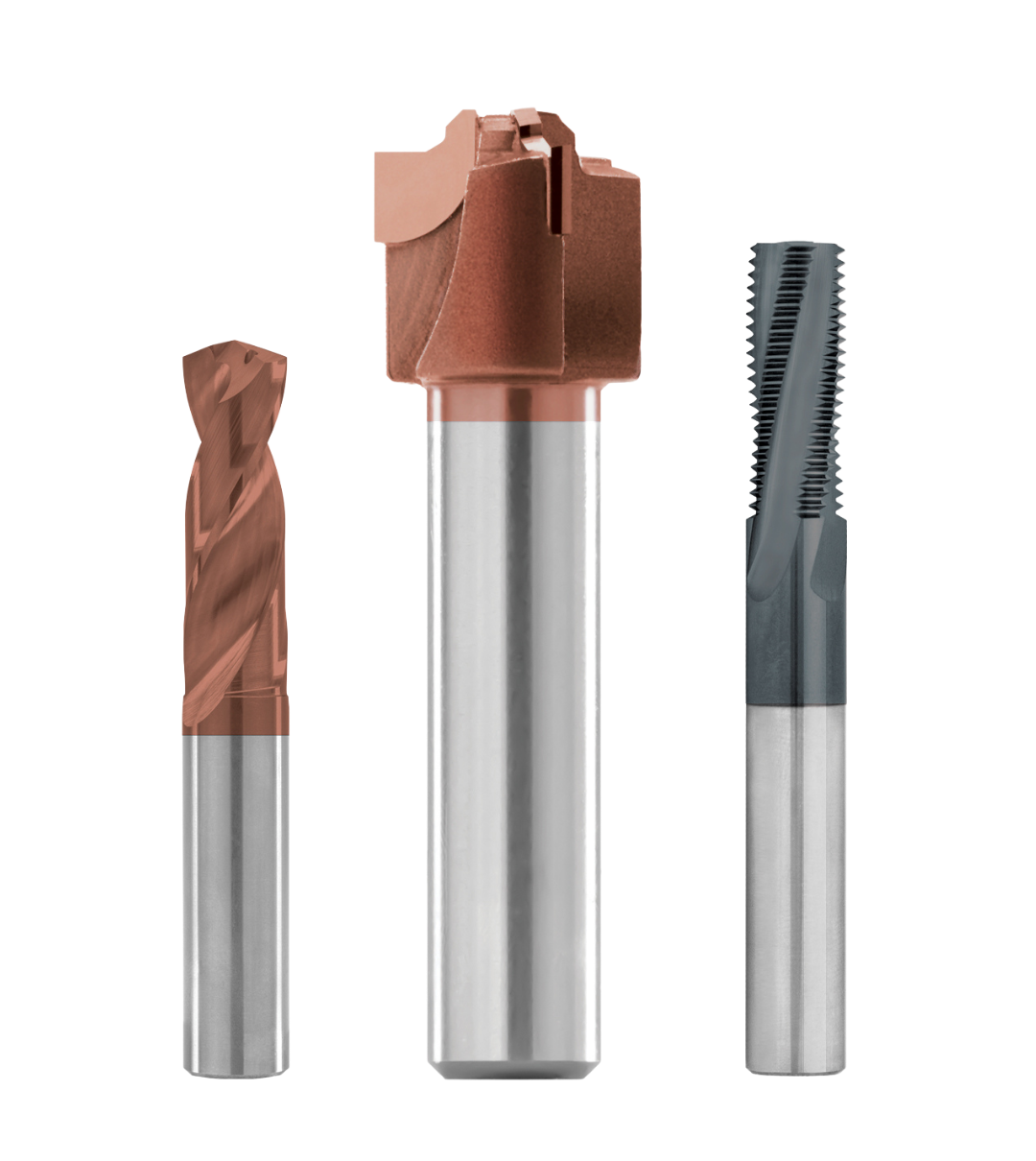

This kit includes:
Minor Diameter Drill, Zirc-coated for preparing the hole to the proper minor diameter
Pilotless SAE J1926 Port Tool, Zirc-coated for machining the port geometry
15° Helical Thread Mill, Onyx DLC-coated for clean, accurate thread milling
A tool-specific coating strategy for non-ferrous applications
The SAE J1926 Minor Diameter Port Kit is designed for shops machining aluminum and other non-ferrous materials that prefer a minor diameter drilling approach before finishing the port with a pilotless tool. The minor diameter drill prepares the hole, the pilotless SAE J1926 port tool machines the port geometry, and the 15° helical thread mill finishes the thread with clean, accurate results.
By bringing these tools together in one matched kit and aligning the coating by tool function, SCT gives shops a more organized and application-specific solution for SAE J1926 porting in non-ferrous materials.
Available SAE J1926 Minor Diameter Kits for Non-Ferrous Materials
Browse available kit sizes below. Each kit includes a matched DFX drill, SAE J1926 pilotless porting tool, and 15° helical thread mill for a roughing-based process in non-ferrous applications.
| Port Size | Drill | Porting Tool | Thread Mill | Kit Order Number | Kit EDP Number |
|---|---|---|---|---|---|
| SAEJ1926-2 | DFX3-272Z | SAEJ1926-02XZ | TMI234-24HT | SAEKIT02XZ | 410013 |
| SAEJ1926-3 | DFX3-335Z | SAEJ1926-03XZ | TMI285-24HT | SAEKIT03XZ | 410015 |
| SAEJ1926-4 | DFX3-389Z | SAEJ1926-04XZ | TMI335-20HT | SAEKIT04XZ | 410017 |
| SAEJ1926-5 | DFX3-452Z | SAEJ1926-05XZ | TMI370-20HT | SAEKIT05XZ | 410019 |
| SAEJ1926-6 | DFX3-509Z | SAEJ1926-06XZ | TMI370-18HT | SAEKIT06XZ | 410021 |
| SAEJ1926-8 | DFX3-689Z | SAEJ1926-08XZ | TMI495-16HT | SAEKIT08XZ | 410023 |
Need help selecting the right non-ferrous kit?
If you want help choosing between AS5202 and SAE J1926, or between Roughing and Minor Diameter, the SCT team can help point you in the right direction.
