SCT’s Parker standard 3-Way Finisher is built for tight-tolerance, final-pass machining of 3-way cavity profiles. With a brazed carbide tip and solid-body design, this tool delivers long tool life and consistent surface finishes—without the need for coolant-through holes. Use after roughing to ensure your Parker standard cavities meet dimensional specs and perform reliably in the field.
Parker Standard Finisher 3-Way Cavity Tool

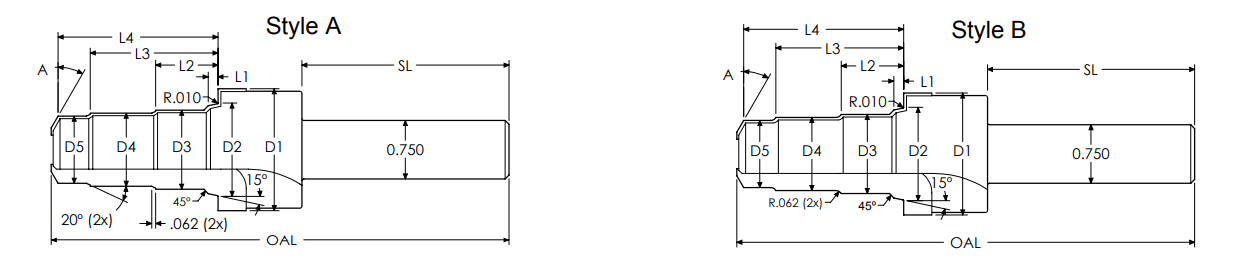

| D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | A | OAL | SL | Flutes | Style | Tool # | Uncoated EDP # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.188 | 0.814 | 0.688 | 0.626 | 0.563 | 0.108 | 0.680 | 1.240 | 1.719 | 31º | 5.00 | 2.12 | 3 | B | SBC08-3-FINISH-X6 | 400408 | 400411 |
| 1.188 | 0.945 | 0.812 | 0.689 | 0.626 | 0.108 | 0.850 | 1.500 | 1.875 | 30º | 5.00 | 2.12 | 3 | B | SBC10-3-FINISH-X6 | 400426 | 400429 |
| 1.625 | 1.150 | 0.975 | 0.938 | 0.876 | 0.138 | 1.062 | 1.908 | 2.326 | 30º | 5.75 | 2.25 | 4 | A | SBC12-3-FINISH-X8 | 400279 | 400291 |
| 1.750 | 1.401 | 1.234 | 1.127 | 1.064 | 0.138 | 1.344 | 2.469 | 2.968 | 30º | 6.25 | 2.12 | 4 | B | SBC16-3-FINISH-X8 | 400282 | 400294 |
