SCT’s Parker standard 4-Way Rougher is engineered for the demands of roughing large 4-way cavity profiles. With a brazed carbide tip and solid-body construction (no coolant-through), this tool offers excellent durability and chip control in high-volume hydraulic manifold applications. Count on it to deliver consistent performance and a clean prep for finishing passes.
Parker Standard Rougher 4-Way Cavity Tool

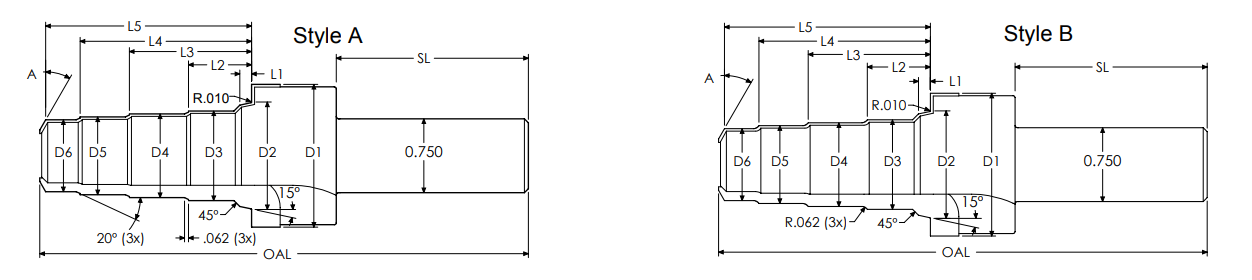

| D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | A | OAL | SL | Flutes | Style | Tool # | Uncoated EDP # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.170 | 0.794 | 0.668 | 0.606 | 0.543 | 0.481 | 0.108 | 0.680 | 1.240 | 1.797 | 2.125 | 31º | 5.50 | 2.12 | 3 | B | SBC08-4-ROUGH-X6 | 400164 | 400165 |
| 1.170 | 0.925 | 0.792 | 0.731 | 0.669 | 0.606 | 0.108 | 0.875 | 1.500 | 2.125 | 2.500 | 31º | 5.50 | 2.12 | 3 | B | SBC10-4-ROUGH-X6 | 400170 | 400171 |
| 1.606 | 1.131 | 0.955 | 0.918 | 0.856 | 0.794 | 0.138 | 1.062 | 1.908 | 2.758 | 3.176 | 30º | 6.50 | 2.25 | 4 | A | SBC12-4-ROUGH-X8 | 400176 | 400177 |
| 1.730 | 1.381 | 1.214 | 1.107 | 1.044 | 0.982 | 0.138 | 1.344 | 2.469 | 3.594 | 4.094 | 30º | 7.25 | 2.25 | 4 | A | SBC16-4-ROUGH-X8 | 400182 | 400183 |
