AND10050-R (Reamer) Port Tool
Scientific Cutting Tools' AND10050-R Port Tool is engineered for applications that require reaming non-standard minor thread diameters with accuracy and consistency. Featuring a heat-treated alloy steel body and premium submicron carbide inserts, this tool delivers durability and high performance. Its precision-ground geometry ensures maximum concentricity, while the optional AlTiN+ coating improves surface finish and extends tool life—making it a reliable solution for aerospace, defense, and fluid power machining.

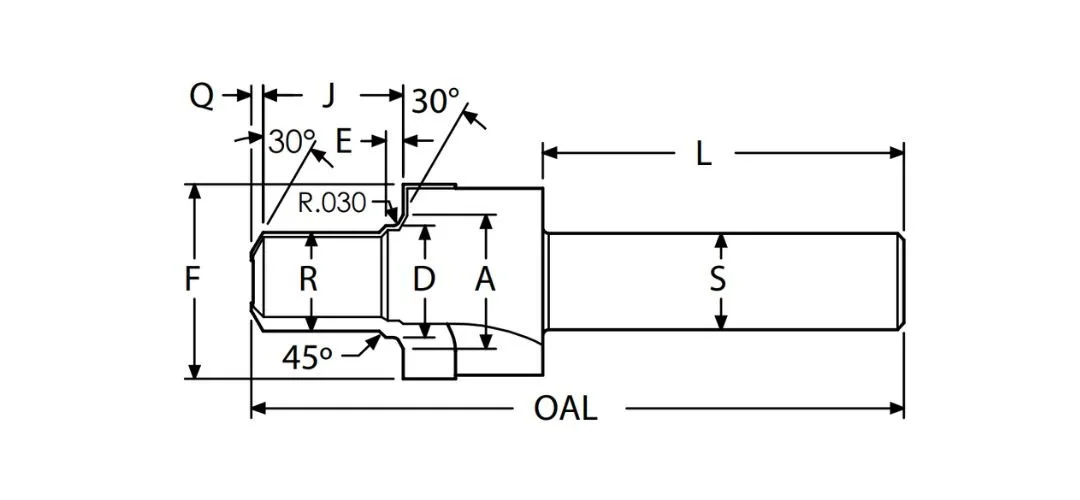

| A | D | E | F | J | R | Q | L | S | OAL | Flutes | Tube | Thread | Tool # | Uncoated EDP # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.446 | 0.3302 | 0.071 | 0.742 | 0.520 | 0.271 | 0.032 | 1.75 | 0.500 | 3.00 | 3 | 0.125 | 0.3125-24 UNF-3B | AND10050-2R | 402528 | 402628 |
| 0.508 | 0.3922 | 0.071 | 0.805 | 0.520 | 0.333 | 0.040 | 1.75 | 0.500 | 3.00 | 3 | 0.188 | 0.3750-24 UNF-3B | AND10050-3R | 402537 | 402637 |
| 0.57 | 0.4562 | 0.083 | 0.888 | 0.610 | 0.386 | 0.045 | 1.88 | 0.500 | 3.12 | 3 | 0.250 | 0.4375-20 UNF-3B | AND10050-4R | 402543 | 402643 |
| 0.633 | 0.5192 | 0.083 | 0.950 | 0.610 | 0.449 | 0.045 | 1.88 | 0.500 | 3.12 | 3 | 0.312 | 0.5000-20 UNF-3B | AND10050-5R | 402549 | 402649 |
| 0.696 | 0.5822 | 0.091 | 1.012 | 0.630 | 0.506 | 0.060 | 1.88 | 0.500 | 3.38 | 3 | 0.375 | 0.5625-18 UNF-3B | AND10050-6R | 402555 | 402655 |
| 0.883 | 0.7712 | 0.102 | 1.240 | 0.738 | 0.686 | 0.070 | 2.12 | 0.750 | 3.70 | 3 | 0.500 | 0.7500-16 UNF-3B | AND10050-8R | 402561 | 402661 |
| 1.008 | 0.8982 | 0.115 | 1.415 | 0.801 | 0.802 | 0.080 | 2.12 | 0.750 | 3.80 | 3 | 0.625 | 0.8750-14 UNF-3B | AND10050-10R | 402501 | 402601 |
| 1.242 | 1.0882 | 0.133 | 1.665 | 0.926 | 0.976 | 0.080 | 2.12 | 0.750 | 3.94 | 3 | 0.750 | 1.0625-12 UN-3B | AND10050-12R | 402507 | 402607 |
| 1.495 | 1.3382 | 0.133 | 1.965 | 0.958 | 1.226 | 0.080 | 2.25 | 1.000 | 4.25 | 3 | 1.000 | 1.3125-12 UN-3B | AND10050-16R | 402513 | 402613 |
| 1.808 | 1.6502 | 0.133 | 2.310 | 1.004 | 1.538 | 0.090 | 2.25 | 1.000 | 4.35 | 3 | 1.250 | 1.6250-12 UN-3B | AND10050-20R | 402519 | 402619 |
| 2.058 | 1.9002 | 0.133 | 2.628 | 1.145 | 1.788 | 0.095 | 2.25 | 1.000 | 4.54 | 3 | 1.500 | 1.8750-12 UN-3B | AND10050-24R | 402522 | 402622 |
| 2.433 | 2.2752 | 0.133 | 3.050 | 1.260 | 2.163 | 0.095 | 2.50 | 1.250 | 4.92 | 3 | 1.750 | 2.2500-12 UN-3B | AND10050-28R | 402525 | 402625 |
| 2.683 | 2.5262 | 0.133 | 3.520 | 1.395 | 2.413 | 0.095 | 2.50 | 1.250 | 5.15 | 3 | 2.000 | 2.5000-12 UN-3B | AND10050-32R | 402534 | 402634 |
