AND10050-S (Solid Pilot) Port Tool

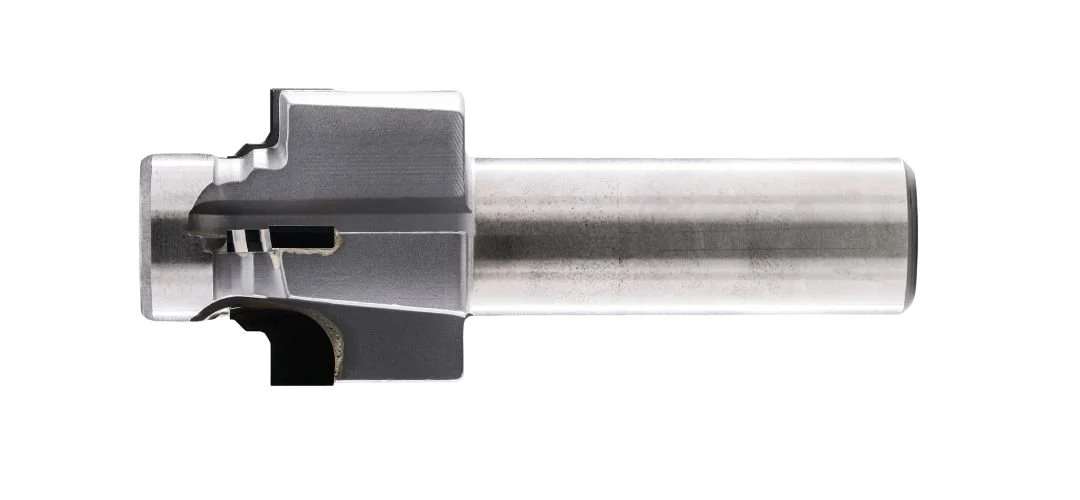

The AND10050-S Port Tool from Scientific Cutting Tools is designed with a solid pilot for applications requiring added alignment and control. Built with a heat-treated alloy steel body and premium submicron carbide inserts, it’s ideal for machining non-standard minor thread diameters. An optional AlTiN+ coating is designed to boost wear resistance and improve surface finish—making it a dependable choice for critical operations in aerospace and hydraulic systems.
| A | D | E | F | J | P | L | S | OAL | Flutes | Tube | Thread | Tool # | Uncoated EDP # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.446 | 0.3302 | 0.071 | 0.742 | 0.365 | 0.270 | 2.00 | 0.500 | 3.00 | 3 | 0.125 | 0.3125-24 UNF-3B | AND10050-2S | 402419 | 402469 |
| 0.508 | 0.3922 | 0.071 | 0.805 | 0.415 | 0.331 | 2.00 | 0.500 | 3.00 | 3 | 0.188 | 0.3750-24 UNF-3B | AND10050-3S | 402425 | 402475 |
| 0.570 | 0.4562 | 0.083 | 0.888 | 0.445 | 0.385 | 2.00 | 0.500 | 3.12 | 3 | 0.250 | 0.4375-20 UNF-3B | AND10050-4S | 402428 | 402478 |
| 0.633 | 0.5192 | 0.083 | 0.950 | 0.465 | 0.448 | 2.00 | 0.500 | 3.12 | 3 | 0.312 | 0.5000-20 UNF-3B | AND10050-5S | 402431 | 402481 |
| 0.696 | 0.5822 | 0.091 | 1.012 | 0.495 | 0.504 | 2.00 | 0.500 | 3.25 | 3 | 0.375 | 0.5625-18 UNF-3B | AND10050-6S | 402434 | 402484 |
| 0.883 | 0.7712 | 0.102 | 1.240 | 0.550 | 0.685 | 2.12 | 0.750 | 3.57 | 3 | 0.500 | 0.7500-16 UNF-3B | AND10050-8S | 402437 | 402487 |
| 1.008 | 0.8982 | 0.115 | 1.415 | 0.600 | 0.801 | 2.12 | 0.750 | 3.66 | 3 | 0.625 | 0.8750-14 UNF-3B | AND10050-10S | 402401 | 402451 |
| 1.242 | 1.0882 | 0.133 | 1.665 | 0.630 | 0.975 | 2.12 | 0.750 | 3.75 | 3 | 0.750 | 1.0625-12 UN-3B | AND10050-12S | 402404 | 402454 |
| 1.495 | 1.3382 | 0.133 | 1.965 | 0.710 | 1.225 | 2.25 | 1.000 | 4.05 | 3 | 1.000 | 1.3125-12 UN-3B | AND10050-16S | 402407 | 402457 |
| 1.808 | 1.6502 | 0.133 | 2.310 | 0.750 | 1.537 | 2.25 | 1.000 | 4.20 | 3 | 1.250 | 1.6250-12 UN-3B | AND10050-20S | 402410 | 402460 |
| 2.058 | 1.9002 | 0.133 | 2.628 | 0.750 | 1.787 | 2.25 | 1.000 | 4.20 | 3 | 1.500 | 1.8750-12 UN-3B | AND10050-24S | 402413 | 402463 |
| 2.433 | 2.2752 | 0.133 | 3.050 | 0.800 | 2.162 | 2.25 | 1.250 | 4.50 | 3 | 1.750 | 2.2500-12 UN-3B | AND10050-28S | 402416 | 402466 |
| 2.683 | 2.5262 | 0.133 | 3.520 | 0.800 | 2.412 | 2.50 | 1.250 | 4.60 | 3 | 2.000 | 2.5000-12 UN-3B | AND10050-32S | 402422 | 402472 |
