AS5202 Pilotless Port Tool

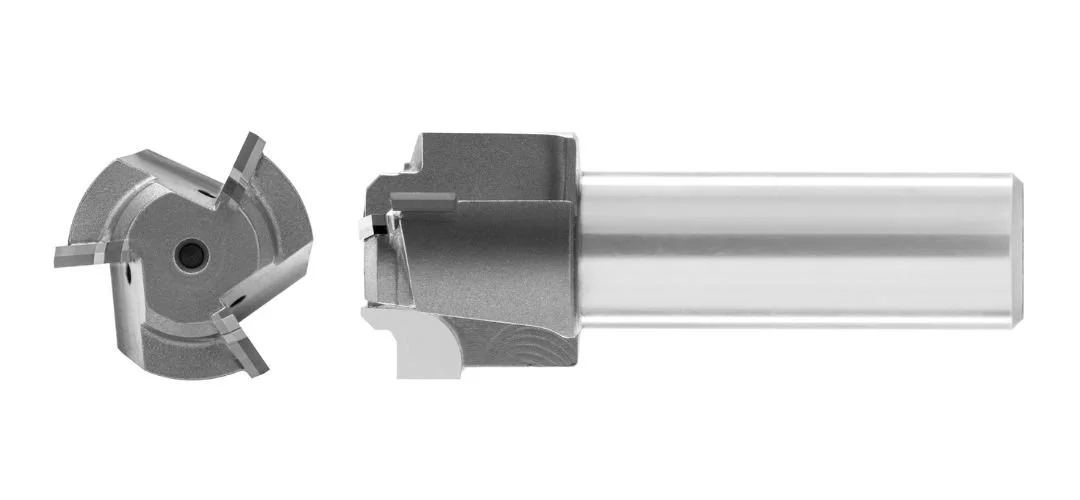

Our AS5202 port tools without pilot are engineered for versatility in non-standard applications where piloted tools aren't feasible. With polished flute faces for enhanced performance and optional AlTiN+ or ZrCN coating for a superior finish, these tools meet the demanding specifications of AS5202 / MS33649 and AND10050 ports. Ideal for aerospace, defense, and precision hydraulic systems.

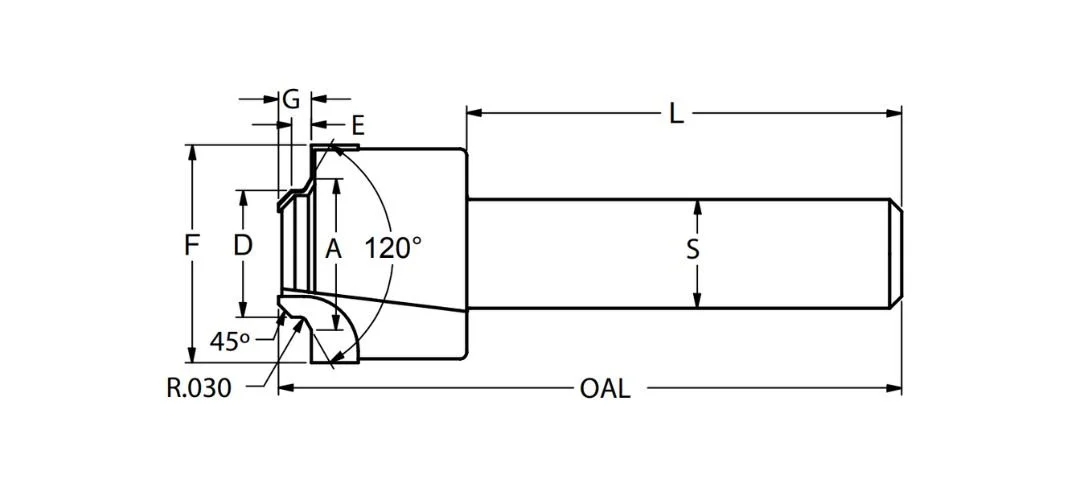

| A | D | E | G | F | S | L | OAL | Flutes | Tube | Thread | Tool # | Uncoated EDP # | AlTiN+ EDP # | ZrCN EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.367 | 0.2662 | 0.071 | 0.121 | 0.575 | 0.500 | 2.00 | 2.75 | 3 | N/A | 0.2500-28 UNJF-3B | AS5202-01X | 406850 | 406851 | 406888 |
| 0.446 | 0.3302 | 0.071 | 0.121 | 0.742 | 0.500 | 2.00 | 2.75 | 3 | 0.125 | 0.3125-24 UNJF-3B | AS5202-02X | 406852 | 406853 | 406889 |
| 0.508 | 0.3922 | 0.071 | 0.121 | 0.805 | 0.500 | 2.00 | 2.75 | 3 | 0.188 | 0.3750-24 UNJF-3B | AS5202-03X | 406854 | 406855 | 406890 |
| 0.570 | 0.4562 | 0.083 | 0.133 | 0.888 | 0.500 | 2.00 | 2.75 | 3 | 0.250 | 0.4375-20 UNJF-3B | AS5202-04X | 406856 | 406857 | 406891 |
| 0.633 | 0.5192 | 0.083 | 0.133 | 0.950 | 0.500 | 2.00 | 2.75 | 3 | 0.312 | 0.5000-20 UNJF-3B | AS5202-05X | 406858 | 406859 | 406892 |
| 0.696 | 0.5822 | 0.091 | 0.151 | 1.012 | 0.500 | 2.00 | 2.75 | 3 | 0.375 | 0.5625-18 UNJF-3B | AS5202-06X | 406860 | 406861 | 406893 |
| 0.758 | 0.6452 | 0.102 | 0.162 | 1.105 | 0.500 | 2.00 | 2.88 | 3 | 0.438 | 0.6250-18 UNJF-3B | AS5202-07X | 406862 | 406863 | 406894 |
| 0.883 | 0.7712 | 0.102 | 0.172 | 1.240 | 0.750 | 2.13 | 3.13 | 3 | 0.500 | 0.7500-16 UNJF-3B | AS5202-08X | 406864 | 406865 | 406895 |
| 0.946 | 0.8342 | 0.115 | 0.185 | 1.300 | 0.750 | 2.13 | 3.13 | 3 | 0.562 | 0.8125-16 UNJ-3B | AS5202-09X | 406866 | 406867 | 406896 |
| 1.008 | 0.8982 | 0.115 | 0.195 | 1.415 | 0.750 | 2.13 | 3.25 | 3 | 0.625 | 0.8750-14 UNJF-3B | AS5202-10X | 406868 | 406869 | 406897 |
| 1.164 | 1.0252 | 0.133 | 0.213 | 1.602 | 0.750 | 2.13 | 3.25 | 3 | 0.688 | 1.0000-12 UNJF-3B | AS5202-11X | 406870 | 406871 | 406898 |
| 1.242 | 1.0882 | 0.133 | 0.213 | 1.665 | 0.750 | 2.13 | 3.25 | 3 | 0.750 | 1.0625-12 UNJ-3B | AS5202-12X | 406872 | 406873 | 406899 |
| 1.370 | 1.2132 | 0.133 | 0.213 | 1.790 | 1.000 | 2.25 | 3.50 | 3 | 0.875 | 1.1875-12 UNJ-3B | AS5202-14X | 406874 | 406875 | 406900 |
| 1.495 | 1.3382 | 0.133 | 0.213 | 1.965 | 1.000 | 2.25 | 3.50 | 3 | 1.000 | 1.3125-12 UNJ-3B | AS5202-16X | 406876 | 406877 | 406901 |
| 1.683 | 1.5262 | 0.133 | 0.213 | 2.090 | 1.000 | 2.25 | 3.50 | 3 | 1.125 | 1.5000-12 UNJF-3B | AS5202-18X | 406878 | 406879 | 406902 |
| 1.808 | 1.6502 | 0.133 | 0.223 | 2.310 | 1.000 | 2.25 | 3.63 | 3 | 1.250 | 1.6250-12 UNJ-3B | AS5202-20X | 406880 | 406881 | 406903 |
| 2.058 | 1.9002 | 0.133 | 0.223 | 2.628 | 1.000 | 2.25 | 3.63 | 3 | 1.500 | 1.8750-12 UNJ-3B | AS5202-24X | 406882 | 406883 | N/A |
| 2.433 | 2.2752 | 0.133 | 0.223 | 3.050 | 1.250 | 2.25 | 3.75 | 3 | 1.750 | 2.2500-12 UNJ-3B | AS5202-28X | 406884 | 406885 | N/A |
| 2.683 | 2.5262 | 0.133 | 0.223 | 3.520 | 1.250 | 2.25 | 3.75 | 3 | 2.000 | 2.5000-12 UNJ-3B | AS5202-32X | 406886 | 406887 | N/A |
