Medium Pressure Autoclave Port Tool

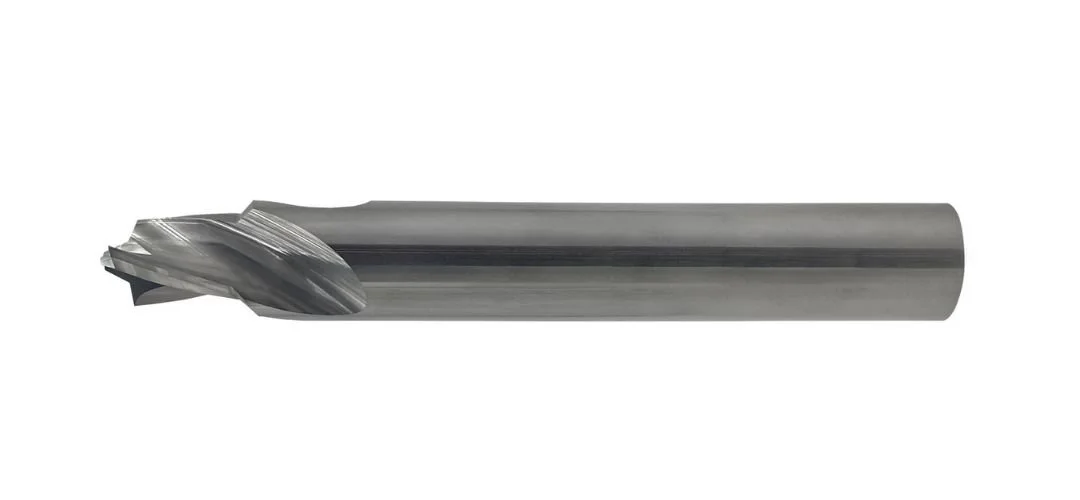

Scientific Cutting Tools' Medium Pressure Autoclave Port Tool is built for critical applications where pressure performance and machining accuracy are paramount. Designed to produce ports that meet the Parker Autoclave Engineers Medium Pressure Standard, this tool is precision ground for maximum concentricity and features polished flutes for optimal chip control and finish. An optional AlTiN+ coating enhances tool life and cutting speed—making it ideal for aerospace, oil & gas, and high-pressure systems.

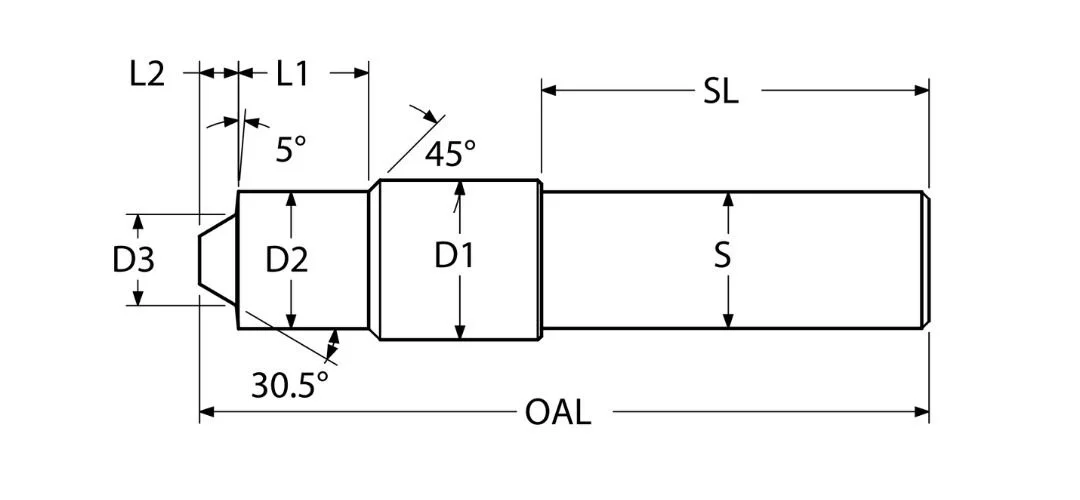

| L1 | L2 | S | SL | OAL | Flutes | Flute Type | Tube | Thread | Connection Type | Tool # | AlTiN+ EDP # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.471 | 0.101 | 0.500 | 2.13 | 3.50 | 3 | Helical | 1/4 | 7/16-20 | SF250CX | PT-SF0250CX-A* | 405006 |
| 0.599 | 0.134 | 0.500 | 2.13 | 3.50 | 3 | Helical | 3/8 | 9/16-18 | SF375CX | PT-SF0375CX-A* | 405008 |
| 0.715 | 0.213 | 0.750 | 2.13 | 4.00 | 3 | Helical | 9/16 | 13/16-16 | SF562CX10 SF562CX20 | PT-SF0562CX-A* | 405010 |
| 0.899 | 0.216 | 0.750 | 2.25 | 4.50 | 3 | Straight | 3/4 | 3/4-14 NPS | SF750CX10 SF750CX20 | PT-SF0750CX-A | 405012 |
| 1.266 | 0.418 | 0.750 | 2.25 | 4.75 | 3 | Straight | 1 | 1-3/8-12 | SF1000CX10 SF1000CX20 | PT-SF1000CX-A | 405014 |
*Solid Carbide
