Cut Ports that Seal Right
the First Time
A cleaner path from drilling to porting to thread milling for AS5202 and SAE J1926 applications.
WHY THIS MATTERS
Poor port quality creates problems that compound
A porting process pieced together one tool at a time can introduce unnecessary risk. When geometry is off, chip control becomes inconsistent, or thread quality suffers, the impact can show up in setup time, rework, assembly issues, and overall process confidence. SCT porting solutions are designed to help simplify the workflow and support cleaner, more repeatable results in high-consequence applications.
SOLUTIONS
What SCT Offers
AS5202
UNJ thread callout and aerospace geometry per MS33649
Options: solid pilot, reamer pilot, and pilotless
Ideal for aerospace hydraulic and fluid power assemblies
Straight thread O‑ring boss port geometry per J1926/1 and MS16142
Options: Solid pilot, reamer pilot, and pilotless
Ideal for automotive hydraulic and fluid power assemblies
SAE J1926
Matched 3-piece kits with a drill, porting tool, and 15° helical thread mill
Organized by ferrous or non-ferrous application
Available for AS5202 and SAE J1926 ports in Roughing and Minor Diameter styles
Porting Kits
PORT KITS
Step 1: Choose Your Material Family
Start by selecting the material family you are machining. SCT Port Kits are available for both ferrous and non-ferrous applications.

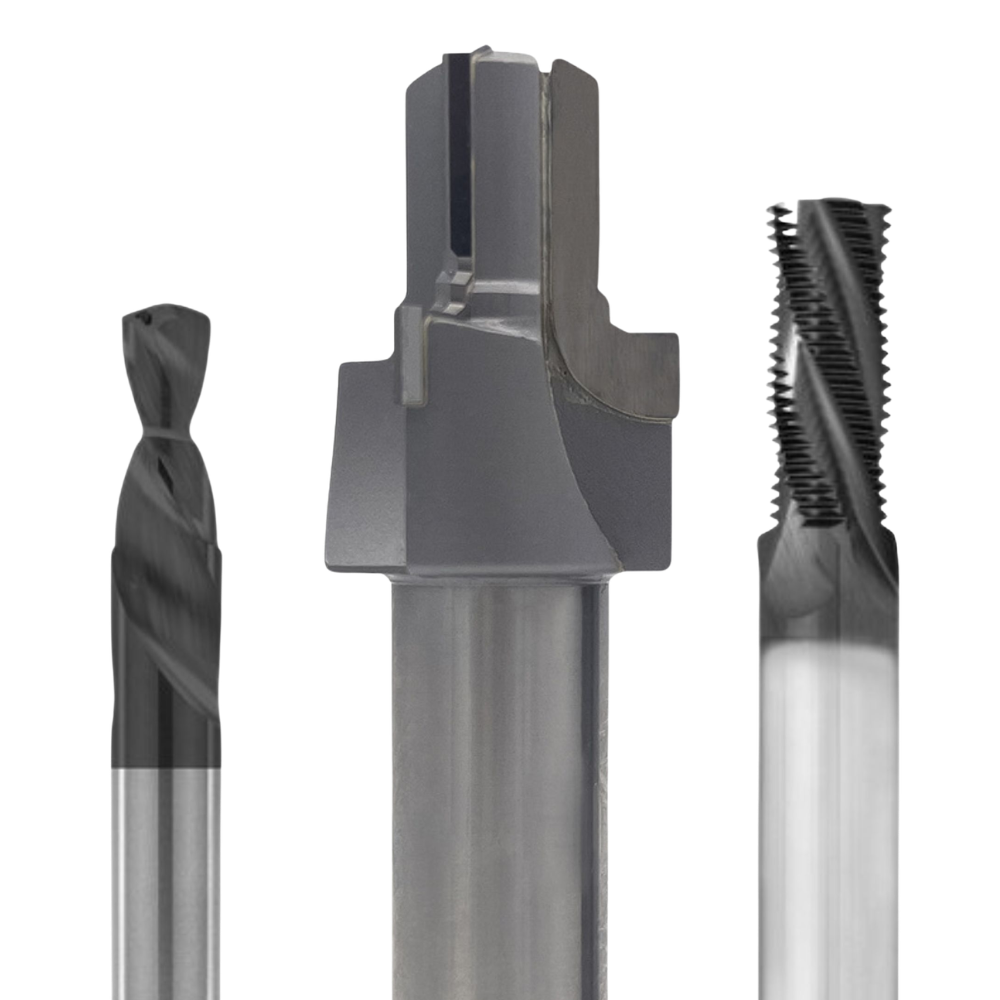

Ferrous Kits

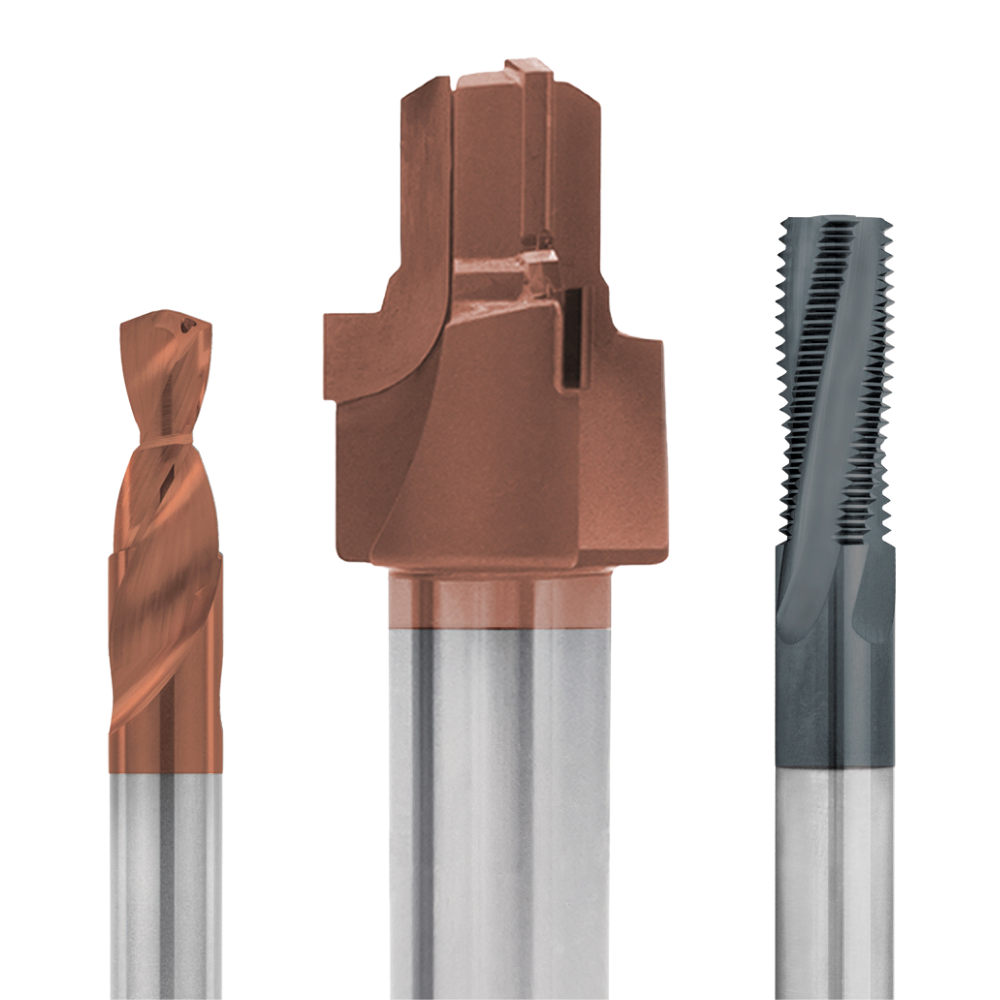

Non-ferrous Kits
Step 2: Choose Workflow
After selecting your material family, you’ll choose the Port Kit workflow that best matches your process.
Roughing Kit
Choose the Roughing Kit when you want to rough in the hole and finish with a reamer-style port tool.
Minor Diameter Kit
Choose the Minor Diameter Kit when you prefer to drill to the minor diameter and follow with a pilotless port tool.
TRUST
Why SCT
Family owned. American made.
Over six decades of porting experience.
In-house technical support.
DXF/STEP files and application support available.
Need help choosing the right path?
Our engineers are here to help you select the right kit for your port standard, workflow, and material.
