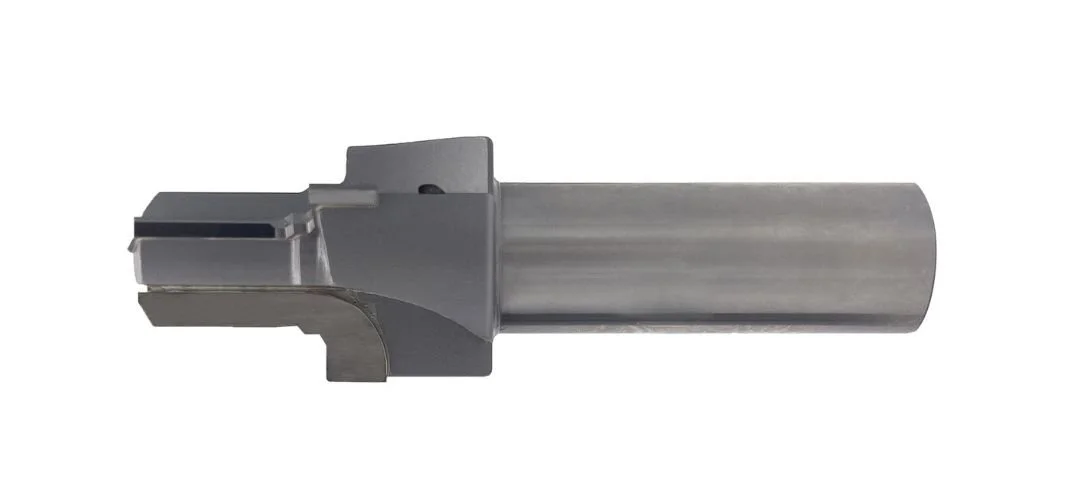

SAE J1926-R (Reamer Pilot) Port Tool

with Coolant Through Holes

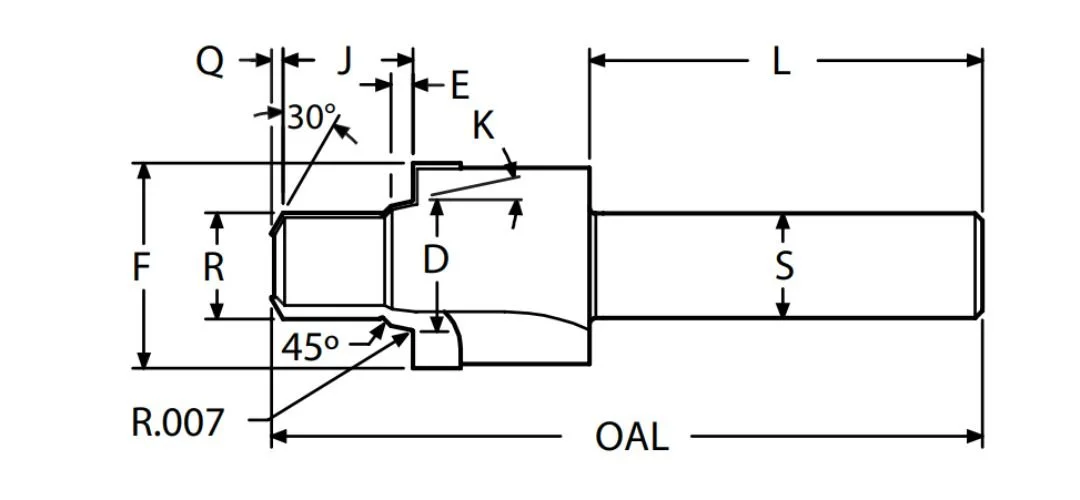

A technical drawing of a SAE J1926-R port tool with dimensiooal callouts

The SAE J1926-R Coolant Through Port Tool from Scientific Cutting Tools is engineered to ream the minor thread diameter to final size while maximizing chip evacuation through coolant-through holes. Carbide tipped and precision ground for maximum concentricity, this tool meets SAE J1926/1 and MS16142 requirements. An optional AlTiN+ coating enhances wear resistance and surface finish, making it ideal for demanding ORB (O-Ring Boss) porting applications where accuracy and thermal control are critical.

K	D	E	F	R	J	Q	L	S	OAL	Flutes	Tube	Thread	SAE#	Tool #	Uncoated EDP #	AlTiN+ EDP #
12°	0.3605	0.082	0.682	0.271	0.479	0.032	1.75	0.50	3.00	3	0.125	0.3125-24 UNF-2B	SAE#2	SAEJ1926-02R-X3	406201	406203
12°	0.4235	0.082	0.760	0.333	0.479	0.040	1.75	0.50	3.00	3	0.188	0.3750-24 UNF-2B	SAE#3	SAEJ1926-03R-X3	406205	406207
12°	0.4900	0.101	0.838	0.388	0.558	0.045	1.88	0.50	3.12	3	0.250	0.4375-20 UNF-2B	SAE#4	SAEJ1926-04R-X3	406209	406211
12°	0.5530	0.101	0.916	0.450	0.558	0.045	1.88	0.50	3.12	3	0.312	0.5000-20 UNF-2B	SAE#5	SAEJ1926-05R-X3	406213	406215
12°	0.6180	0.105	0.990	0.507	0.620	0.055	1.88	0.50	3.38	3	0.375	0.5625-18 UNF-2B	SAE#6	SAEJ1926-06R-X3	406217	406219
15°	0.8130	0.108	1.198	0.688	0.699	0.070	2.12	0.75	3.70	3	0.500	0.7500-16 UNF-2B	SAE#8	SAEJ1926-08R-X3	406221	406223
15°	0.9450	0.108	1.354	0.804	0.792	0.080	2.12	0.75	3.80	3	0.625	0.8750-14 UNF-2B	SAE#10	SAEJ1926-10R-X3	406225	406227
15°	1.1500	0.138	1.635	0.979	0.917	0.080	2.12	0.75	3.94	3	0.750	1.0625-12 UN-2B	SAE#12	SAEJ1926-12R-X3	406229	406231
15°	1.2755	0.138	1.775	1.104	0.917	0.090	2.25	1.00	4.21	3	0.875	1.875-12 UN-2B	SAE#14	SAEJ1926-14R-X3	406233	406235
15°	1.4000	0.138	1.935	1.229	0.917	0.090	2.25	1.00	4.25	3	1.000	1.3125-12 UN-2B	SAE#16	SAEJ1926-16R-X3	406237	406239
