SAE J1926 Pilotless Port Tool

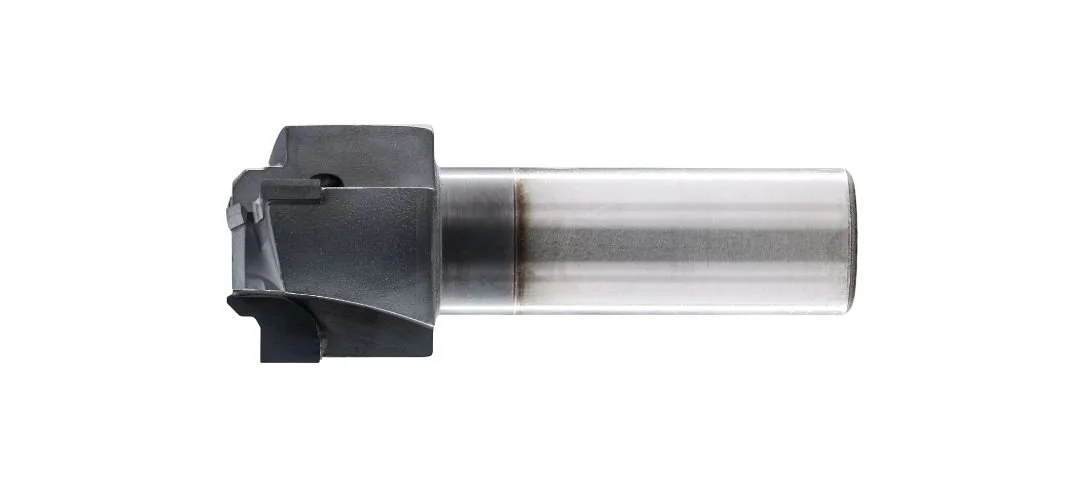

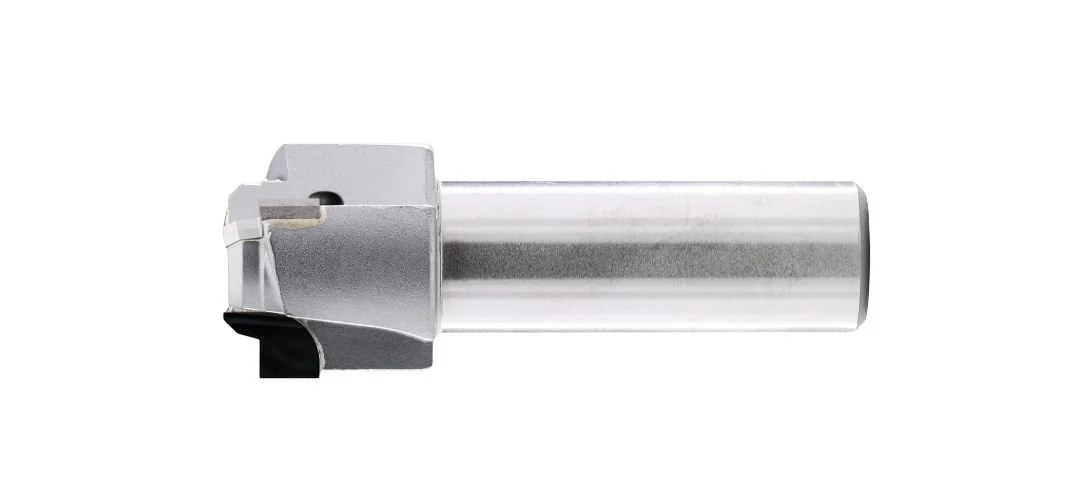

Scientific Cutting Tools’ SAE J1926 Pilotless Port Tools are engineered for versatility in machining ORB (O-Ring Boss) ports, especially when dealing with non-standard minor diameter lengths. Without a pilot, these tools offer added flexibility in setups while maintaining precision. Each tool is carbide tipped, with a polished flute face for clean cutting and coolant through holes for efficient chip evacuation. They meet SAE J1926/1 and MS16142 standards, and are available with an optional AlTiN+ or ZrCN coating to enhance tool life and surface finish in demanding materials.

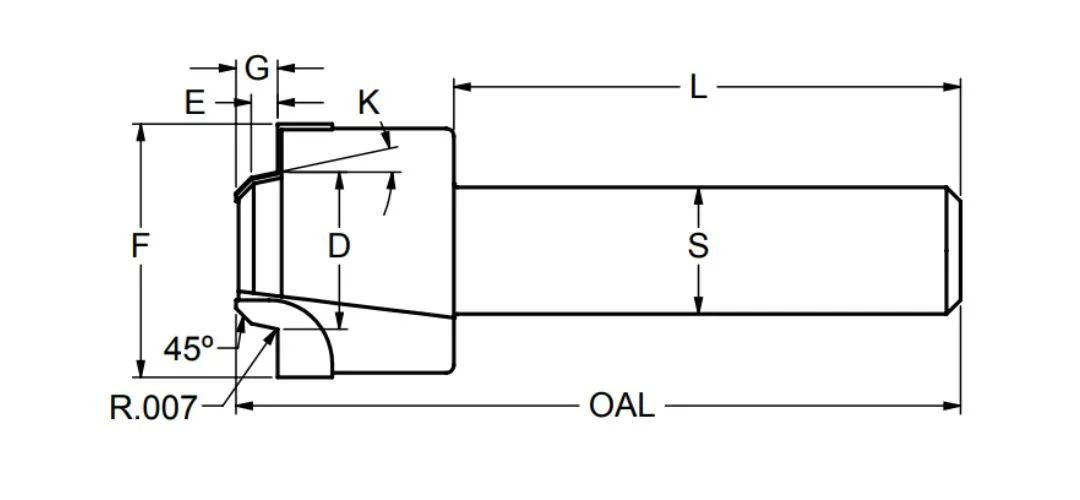

| K | D | E | G | F | S | L | OAL | Flutes | Tube | Thread | SAE# | Tool # | Uncoated EDP # | AlTiN+ EDP # | ZrCN EDP# |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12° | 0.3605 | 0.082 | 0.132 | 0.682 | 0.500 | 2.00 | 2.75 | 3 | 0.125 | 0.3125-24 UNF-2B | SAE#2 | SAEJ1926-02X | 406800 | 406801 | 406826 |
| 12° | 0.4235 | 0.082 | 0.132 | 0.760 | 0.500 | 2.00 | 2.75 | 3 | 0.188 | 0.3750-24 UNF-2B | SAE#3 | SAEJ1926-03X | 406802 | 406803 | 406827 |
| 12° | 0.4900 | 0.101 | 0.151 | 0.838 | 0.500 | 2.00 | 2.75 | 3 | 0.250 | 0.4375-20 UNF-2B | SAE#4 | SAEJ1926-04X | 406804 | 406805 | 406828 |
| 12° | 0.5530 | 0.101 | 0.151 | 0.916 | 0.500 | 2.00 | 2.75 | 3 | 0.312 | 0.5000-20 UNF-2B | SAE#5 | SAEJ1926-05X | 406806 | 406807 | 406829 |
| 12° | 0.6180 | 0.105 | 0.165 | 0.990 | 0.500 | 2.00 | 2.88 | 3 | 0.375 | 0.5625-18 UNF-2B | SAE#6 | SAEJ1926-06X | 406808 | 406809 | 406830 |
| 15° | 0.8130 | 0.103 | 0.178 | 1.198 | 0.750 | 2.13 | 3.13 | 3 | 0.500 | 0.7500-16 UNF-2B | SAE#8 | SAEJ1926-08X | 406810 | 406811 | 406831 |
| 15° | 0.9450 | 1.108 | 0.188 | 1.354 | 0.750 | 2.13 | 3.25 | 3 | 0.625 | 0.8750-14 UNF-2B | SAE#10 | SAEJ1926-10X | 406812 | 406813 | 406832 |
| 15° | 1.1500 | 0.138 | 0.218 | 1.635 | 0.750 | 2.13 | 3.25 | 3 | 0.750 | 1.0625-12 UN-2B | SAE#12 | SAEJ1926-12X | 406814 | 406815 | 406833 |
| 15° | 1.2755 | 0.138 | 0.218 | 1.775 | 1.000 | 2.25 | 3.50 | 3 | 0.875 | 1.875-12 UN-2B | SAE#14 | SAEJ1926-14X | 406816 | 406817 | 406834 |
| 15° | 1.4000 | 0.138 | 0.218 | 1.935 | 1.000 | 2.25 | 3.50 | 3 | 1.000 | 1.3125-12 UN-2B | SAE#16 | SAEJ1926-16X | 406818 | 406819 | 406835 |
| 15° | 1.7150 | 0.138 | 0.228 | 2.290 | 1.000 | 2.25 | 3.63 | 3 | 1.250 | 1.6250-12 UN-2B | SAE#20 | SAEJ1926-20X | 406820 | 406821 | 406836 |
| 15° | 1.9650 | 0.138 | 0.228 | 2.570 | 1.000 | 2.25 | 3.63 | 3 | 1.500 | 1.8750-12 UN-2B | SAE#24 | SAEJ1926-24X | 406822 | 406823 | N/A |
| 15° | 2.5890 | 0.138 | 0.228 | 3.490 | 1.250 | 2.25 | 3.75 | 3 | 2.000 | 2.5000-12 UN-2B | SAE#32 | SAEJ1926-32X | 406824 | 406825 | N/A |
